Epoch Battery

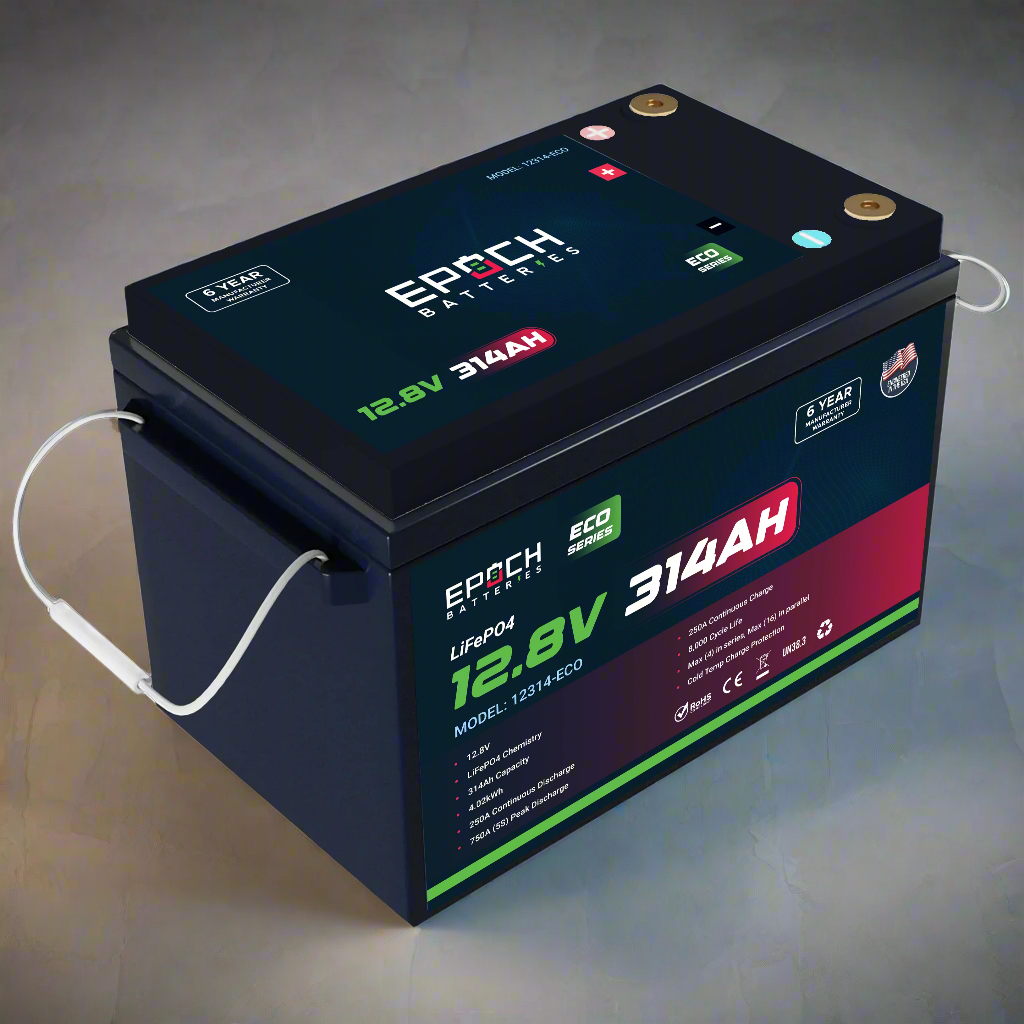

Epoch Batteries 12V 314Ah (4.02kWh) - Eco Series LiFePO4 Battery
Epoch Batteries 12V 314Ah (4.02kWh) - Eco Series LiFePO4 Battery
Regular price
$699.00 USD
Regular price
Sale price
$699.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- LiFePO4 Chemistry - Deep Cycle Battery
- L15.5" x W7.63" x H10.5"
- Low-Temperature cut-off (Charge Protection)
- Built-in Smart Battery Management System (BMS)
- Advanced BMS system with 20+ safety features built in
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- Max (4) in Series up to 48V
- Max (16) in Parallel up to 64.3 kWh
- 8,000+ Cycle life & Maintenance-free
- 6 Year Manufacturer Warranty
Configuration
-
Cell Configuration: 4S1PChemistry: LiFePO4CurrentAh Capacity: 314AhMax Continuous Discharge Amps: 250AMax Charge Current Amps: 250AMax Discharge Peak Current Amps: 750A (5 Seconds)Series | Parallel: Max (4) in Series, Max (16) in ParallelVoltageVoltage: 12.8VMax Charge Voltage: 14.6VOperating Voltage Range: 10.0 - 14.6VTemperatureCharge Temp Range: 0°C (32°F) / 55°C (131°F)Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)Storage Temp: 0°C (32°F) / 35°C (95°F)Weight: 57 (LBS)DimensionsLength: 13.75" @ Base, 15.5" @ Handles (inches)Width: 7.63" (inches)Height: 10.0", 10.5' with Terminal Bolts (inches)To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.Bulk/Absorption: 14.2V – 14.6VAbsorption Time: Two batteries in parallel connections require 30 minutes 200AhFloat: 13.4V – 13.8VEqualization: 14.4V/ DisabledTemperature Compensation: 0/DisabledCharge Rate: 50% of the battery or battery bank capacityBattery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)Cell Discharge Temperature: -4°F (-20°C) to 140°F (60°C)NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
