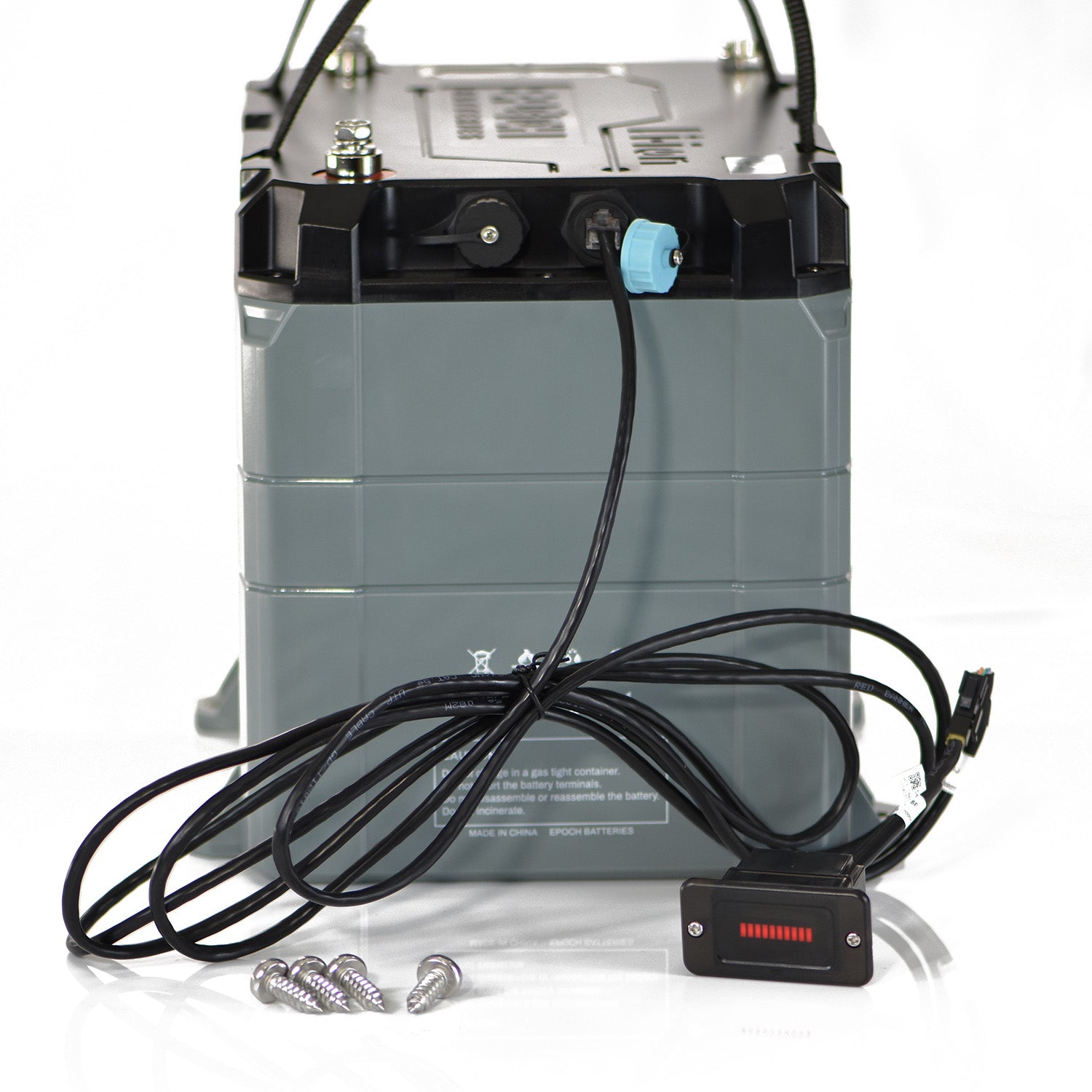

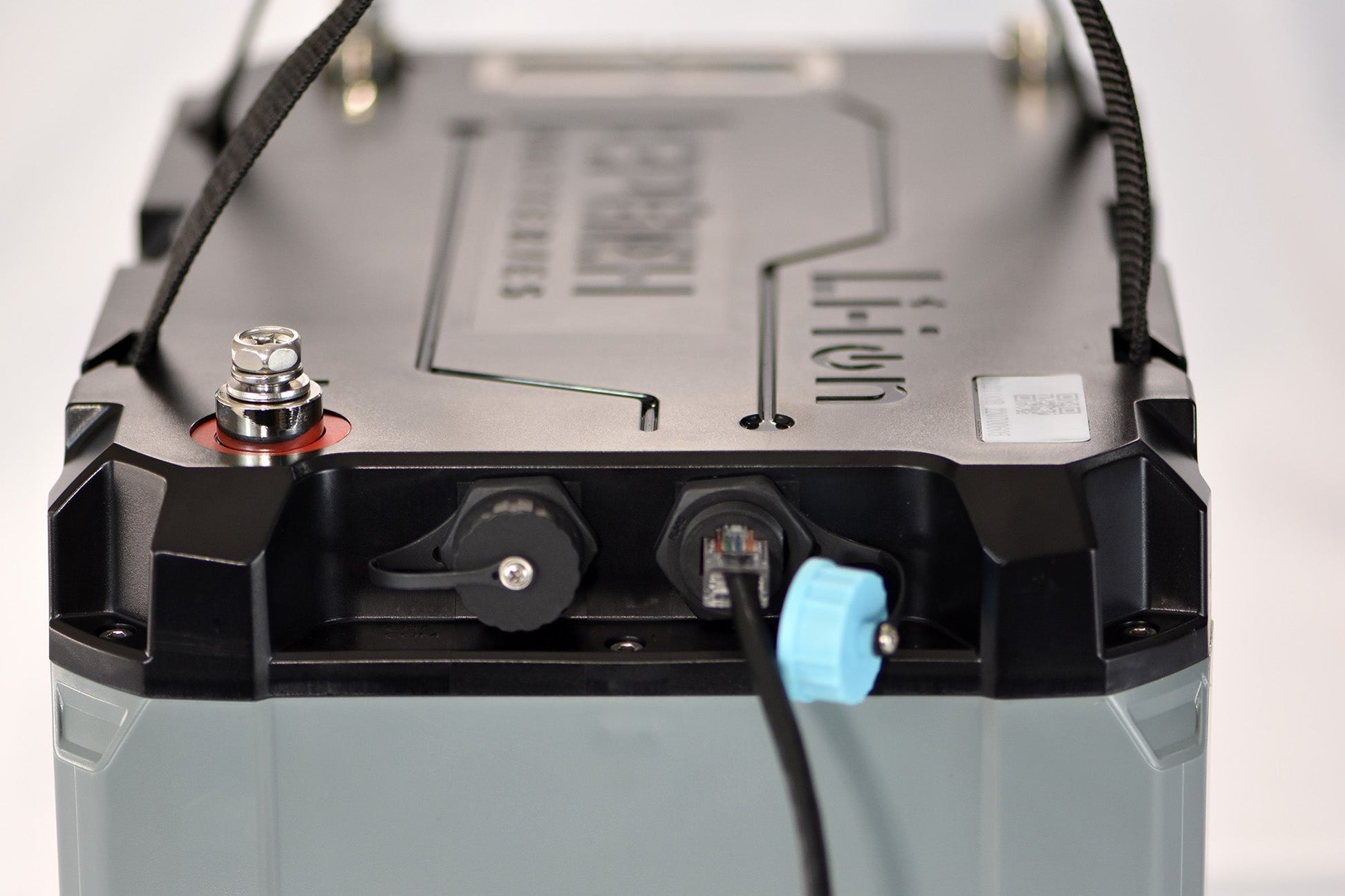

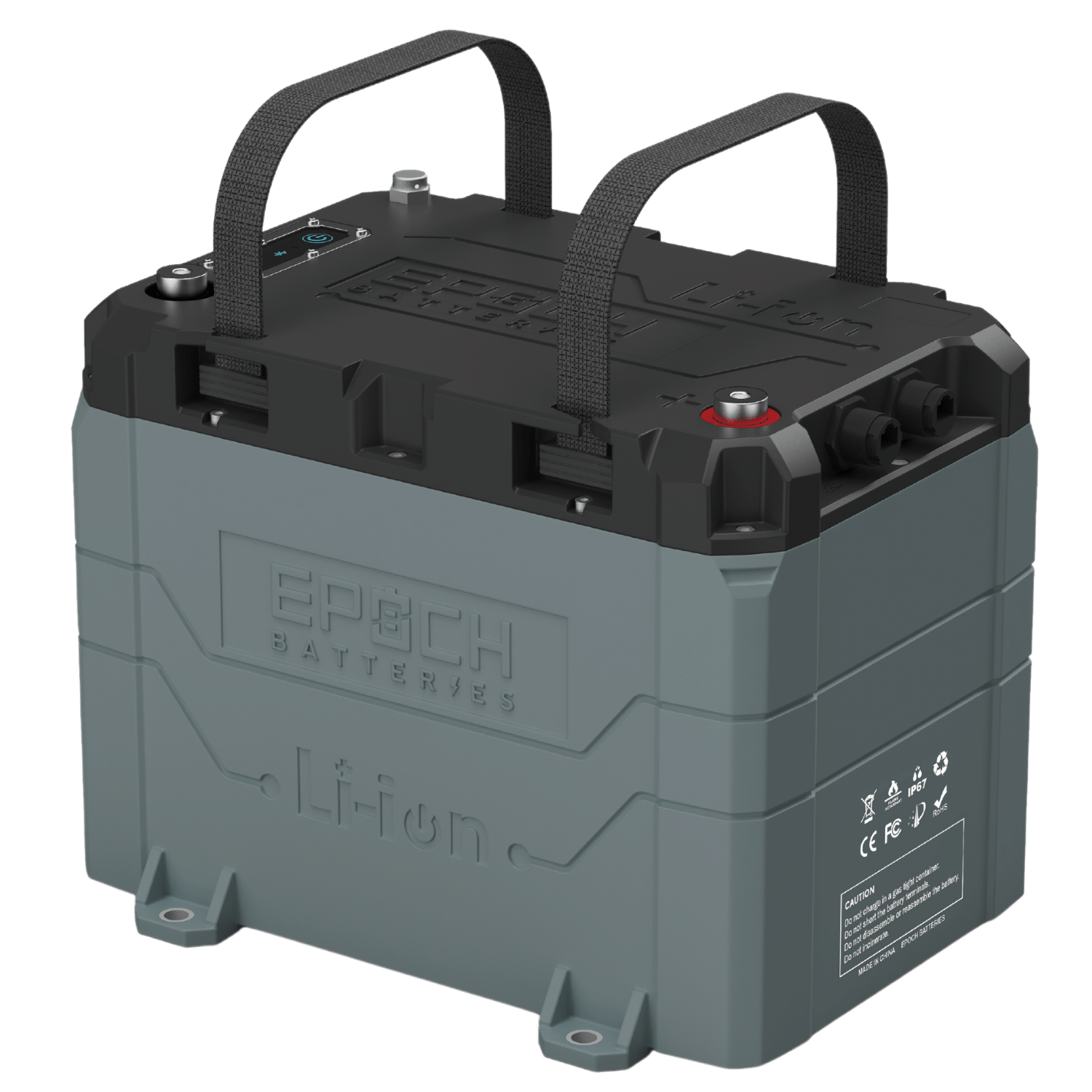

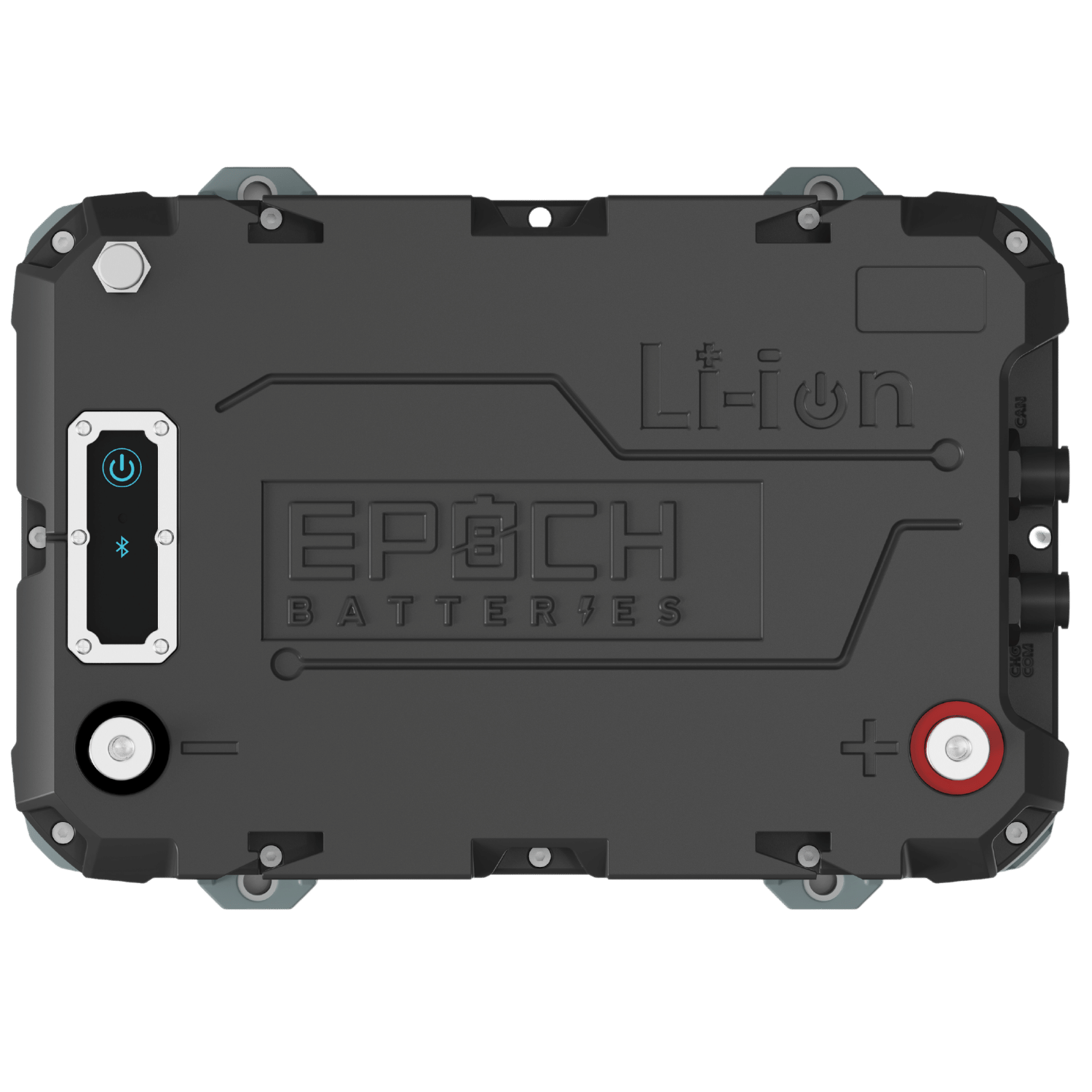

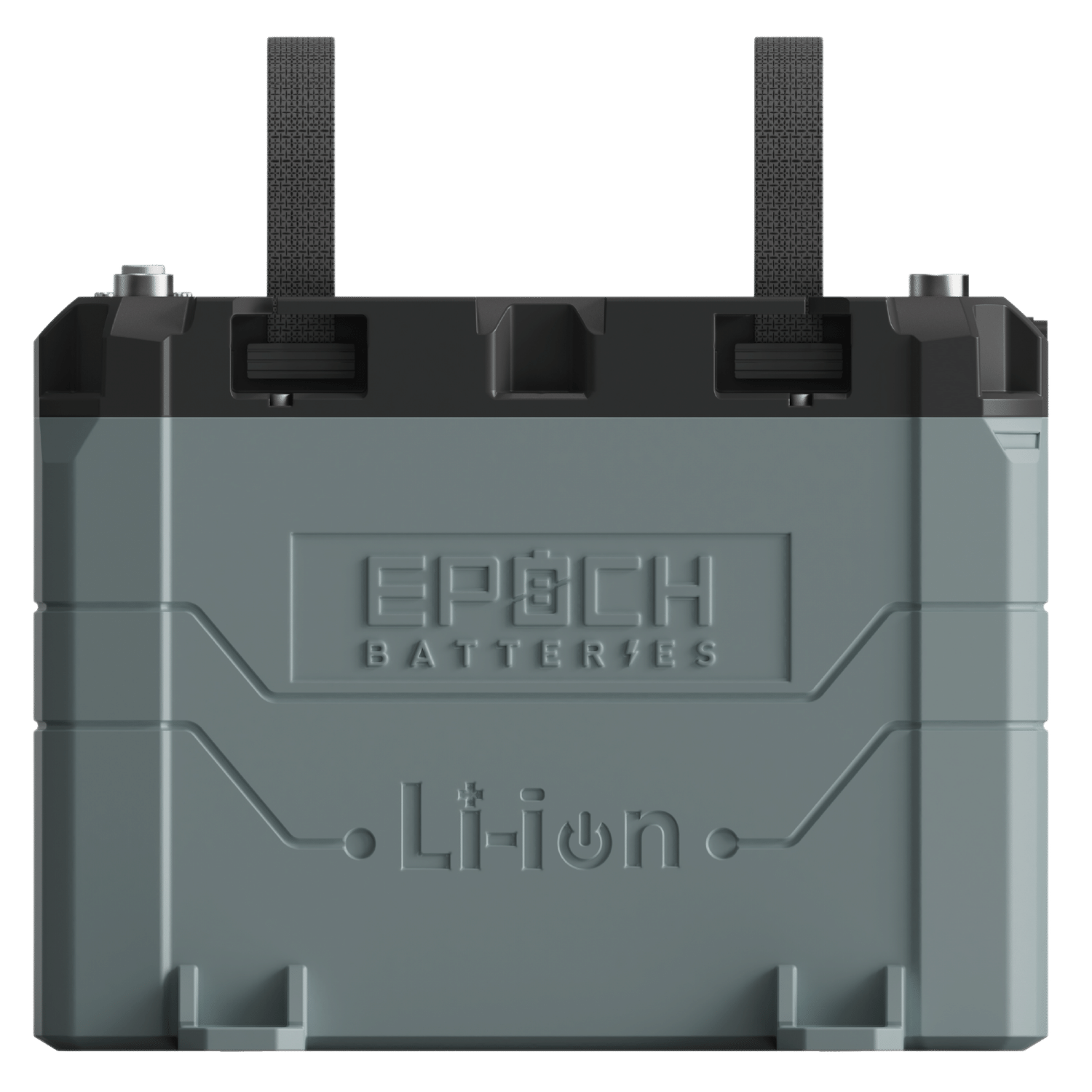

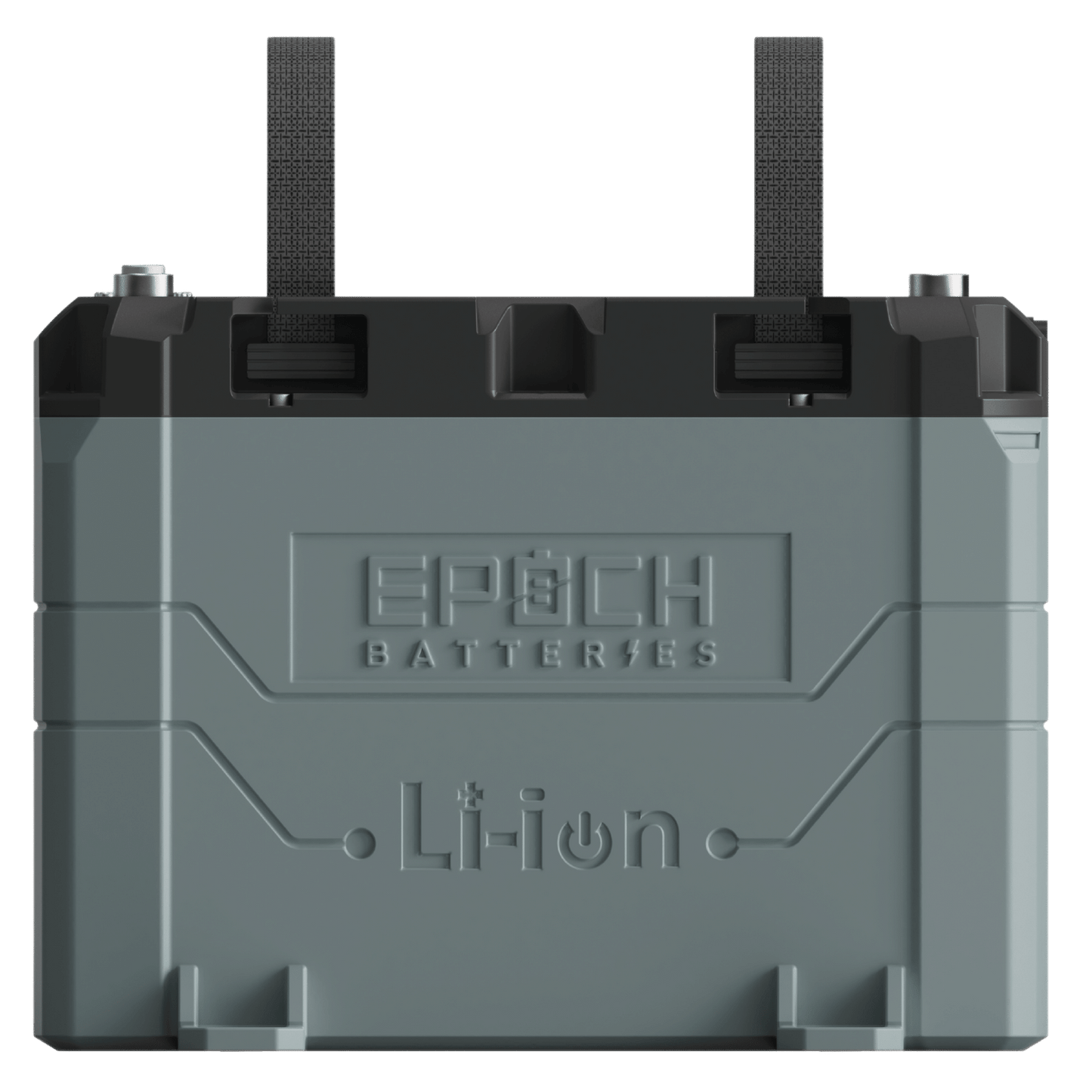

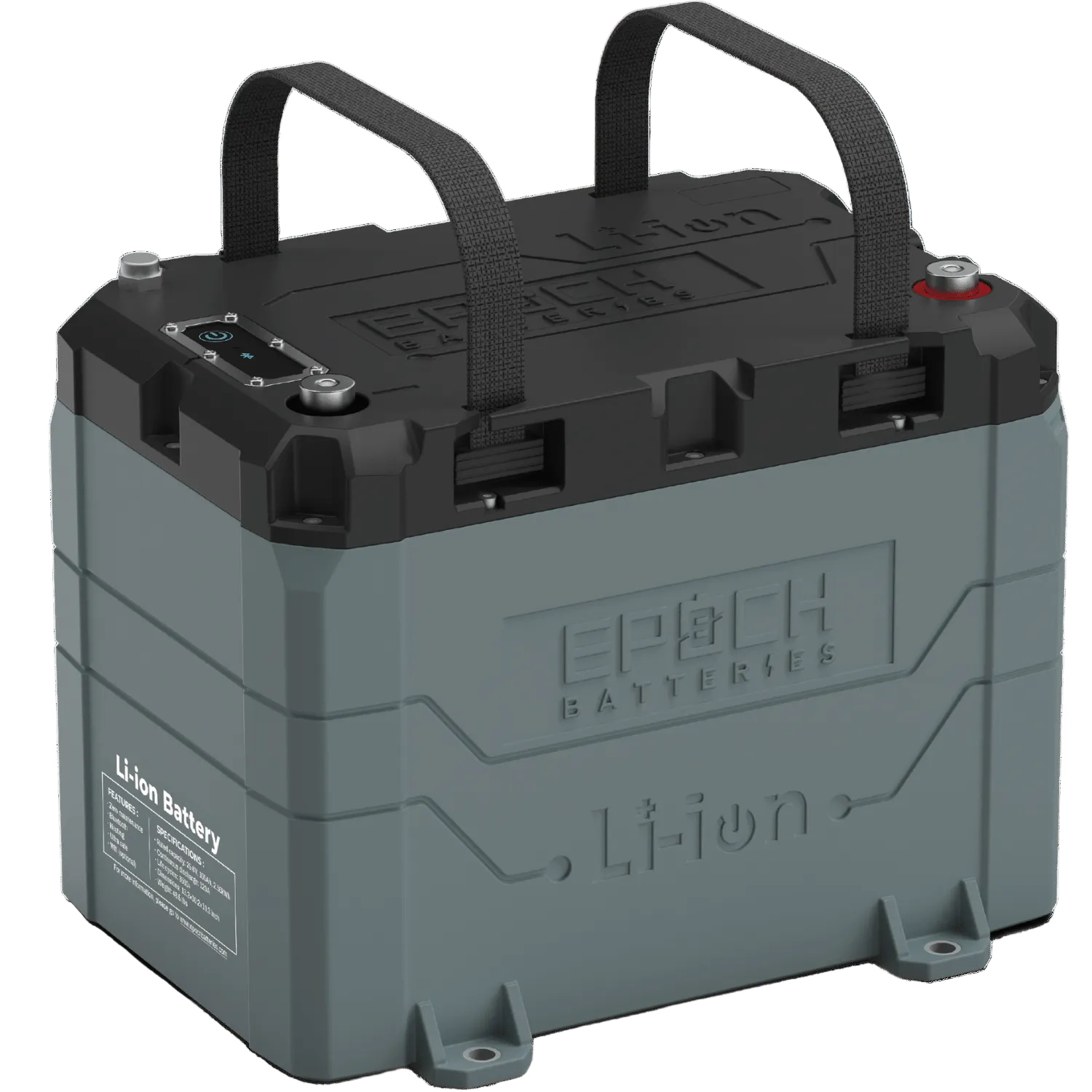

Epoch Batteries 24V 100Ah (2.56kWh) LiFePO4 Lithium Battery - Bluetooth, Heating, Waterproof
Epoch Batteries 24V 100Ah (2.56kWh) LiFePO4 Lithium Battery - Bluetooth, Heating, Waterproof
Regular price
$1,199.00 USD
Regular price
Sale price
$1,199.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- LiFePO4 Chemistry - Deep Cycle Battery
- HEATED - Internal heating allows for charging in sub-zero conditions

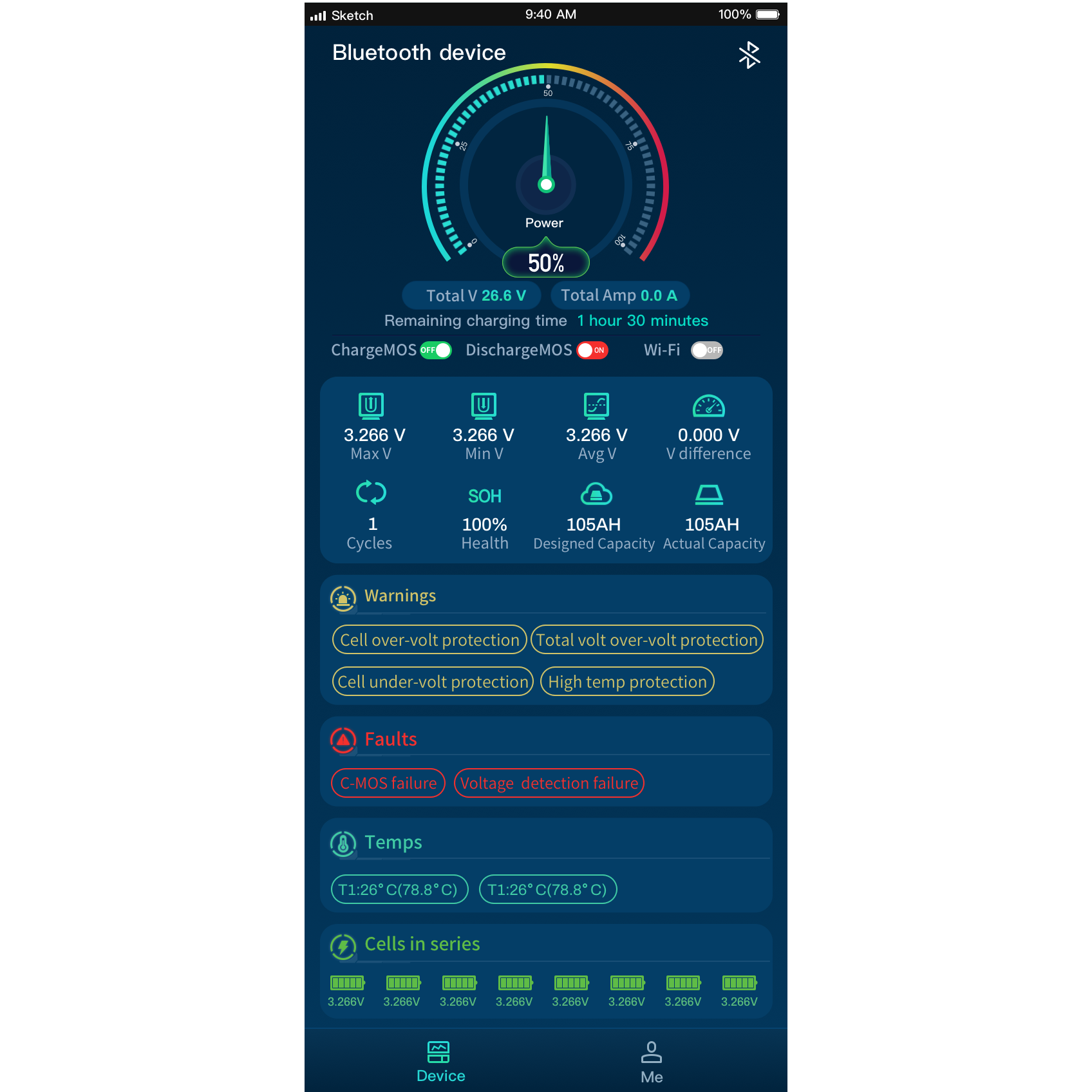

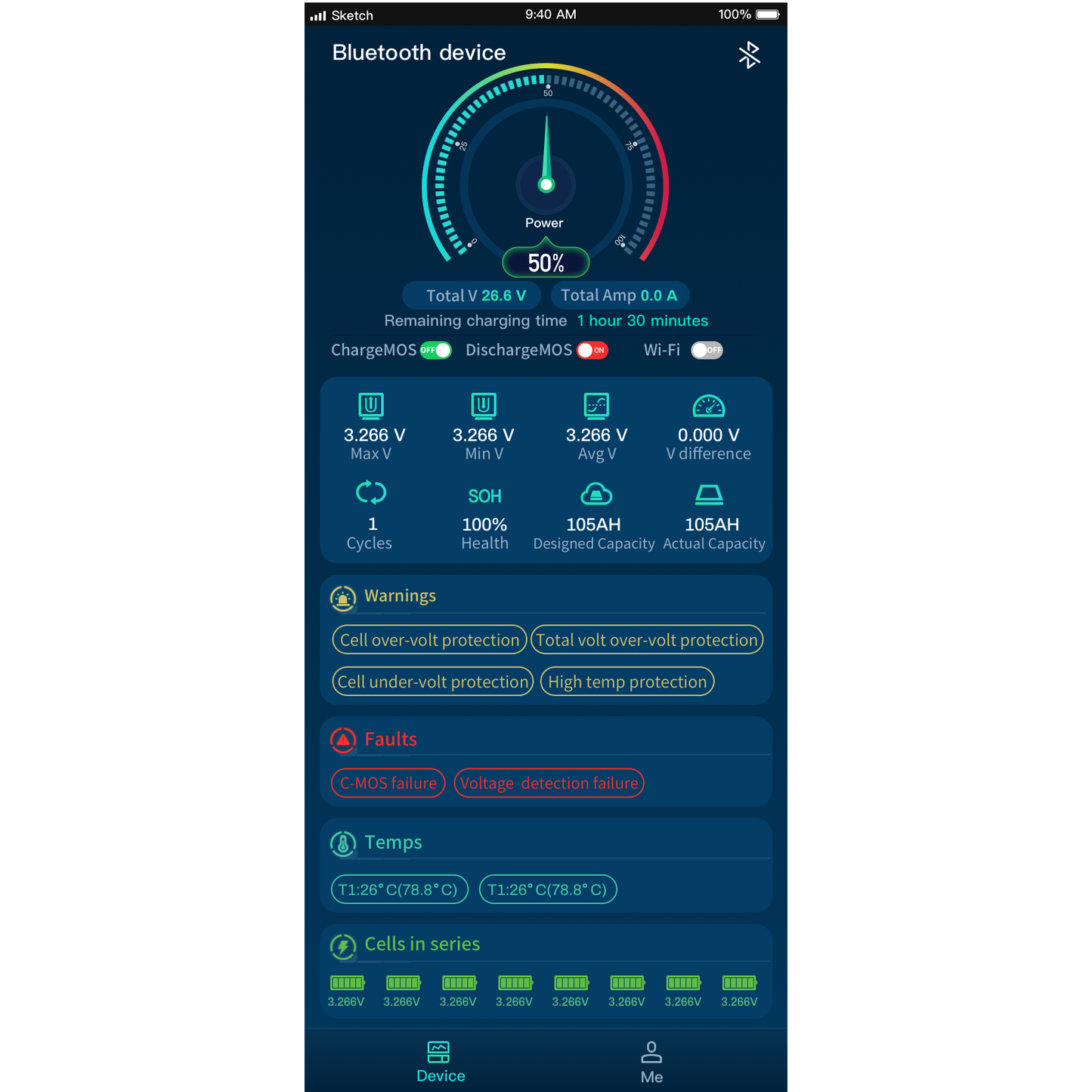

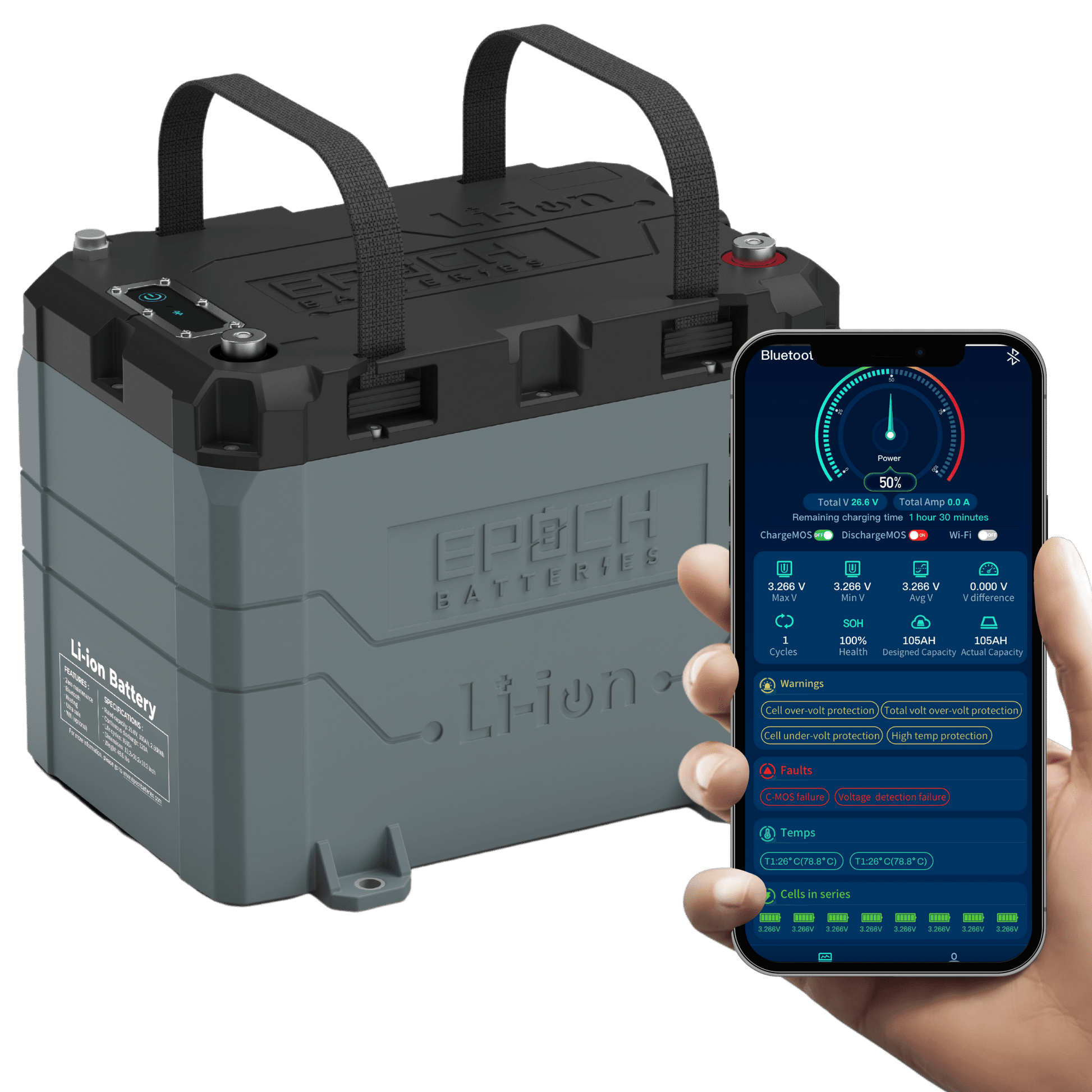

- BLUETOOTH - iOS and Android Apps
- IP67 Rated, Dust and WATERPROOF
- Built-in Smart Battery Management System (BMS)
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- Max (4) in Parallel up to 400Ah
- 3500+ Cycle life & Maintenance-free
- 11 Year Manufacturer Warranty
Configuration
Cell Configuration: 8S
Chemistry: LiFePO4
Current
Ah Capacity: 100Ah
Max Continuous Discharge Amps: 120A
Max Charge Current Amps: 150A (10 Seconds)
Max Discharge Peak Current Amps: 200A (60 Seconds)
Series | Parallel: Max (2) in Series | Max (4) in Parallel
Voltage
Voltage: 24V
Max Charge Voltage: 29.2V
Operating Voltage Range: 20 - 29.2V
Temperature
Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)
Weight: 48.5 (LBS)
Dimensions
Length: 13 (inches)
Width: 10.25 (inches)
Height: 11 (inches)
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
Bulk/Absorption: 14.2V – 14.6V
Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
Float: 13.4V – 13.8V
Equalization: 14.4V/ Disabled
Temperature Compensation: 0/Disabled
Charge Rate: 50% of the battery or battery bank capacity
Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
Cell Discharge Temperature: -4°F (-20°C) to 140°F (60°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
