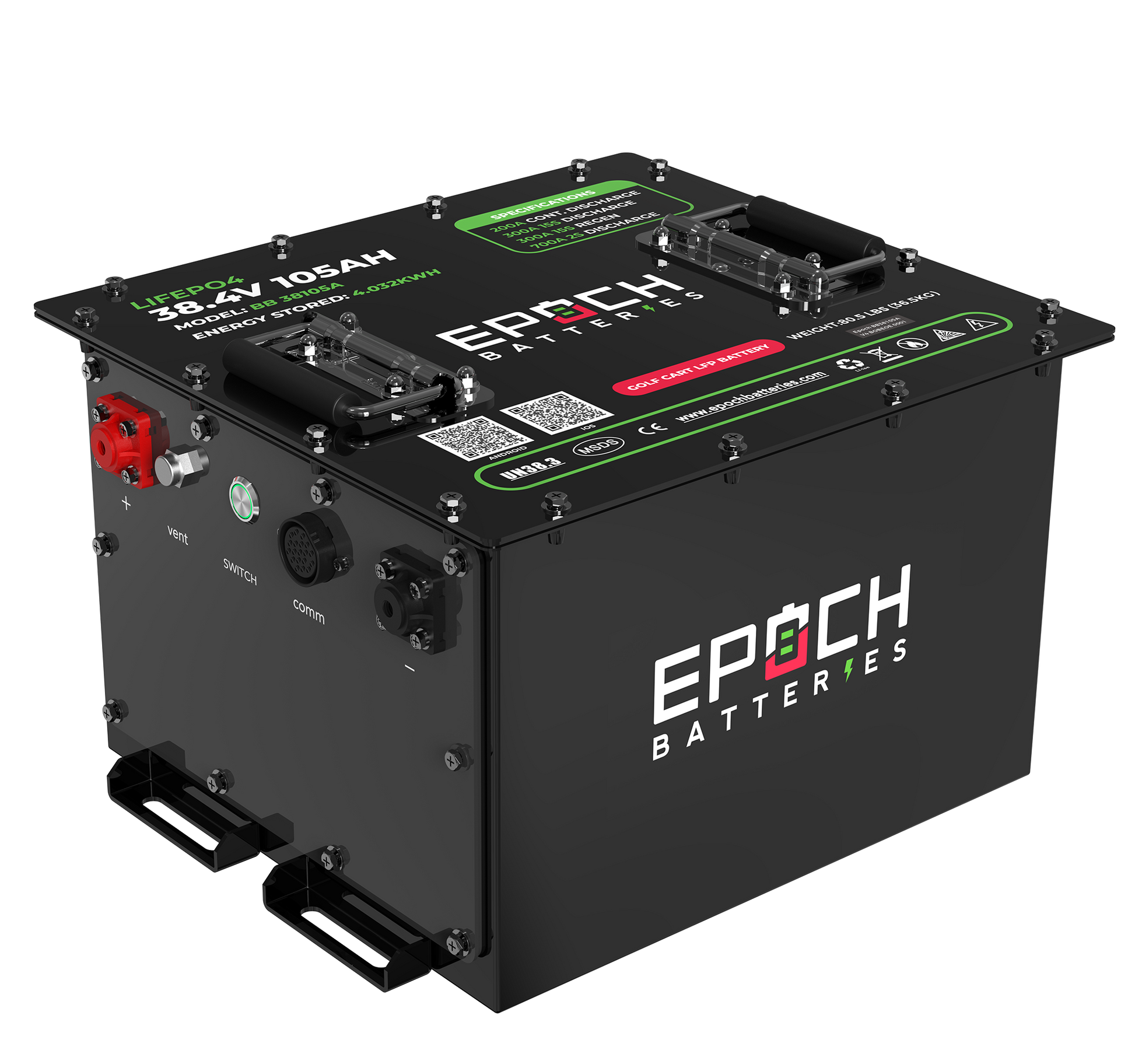

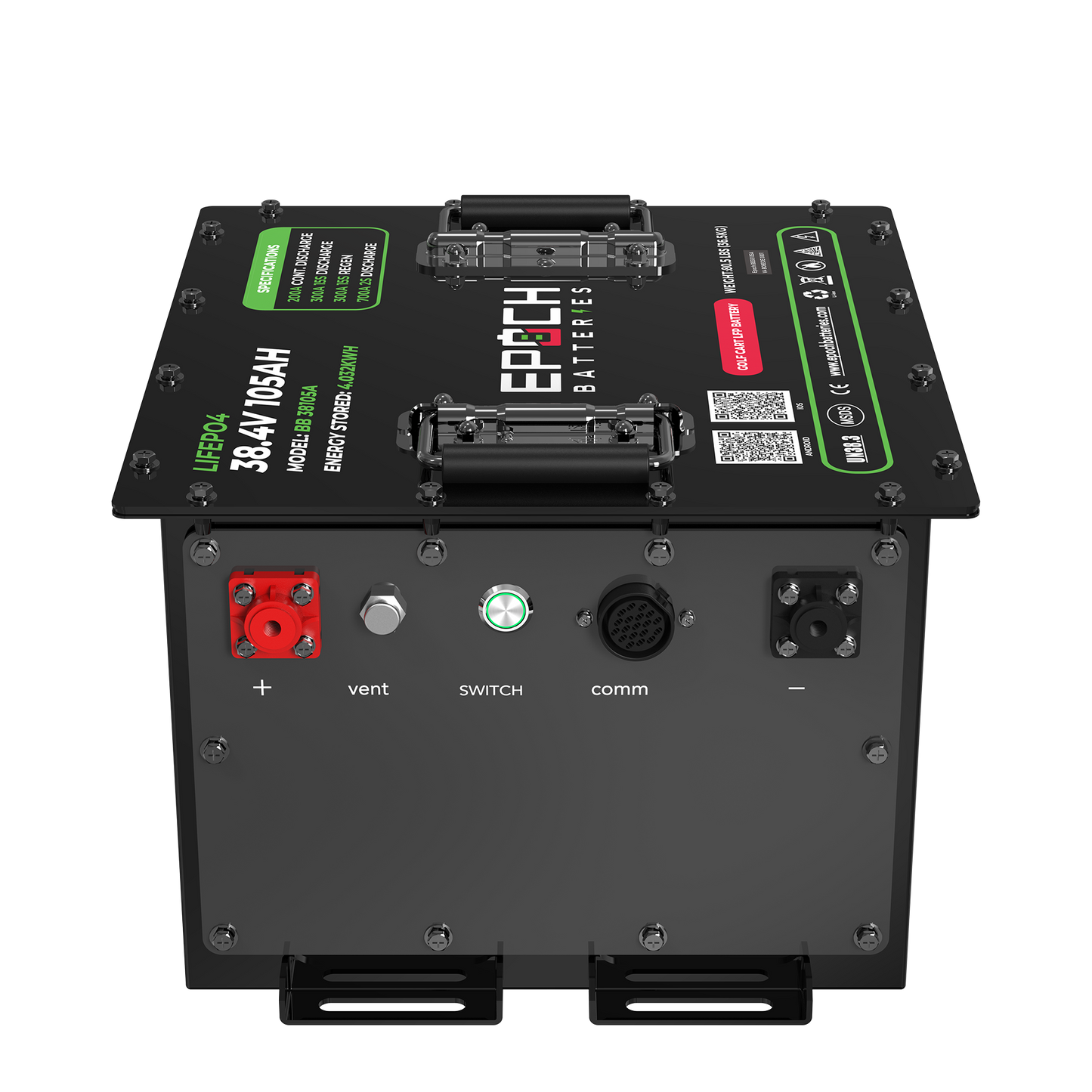

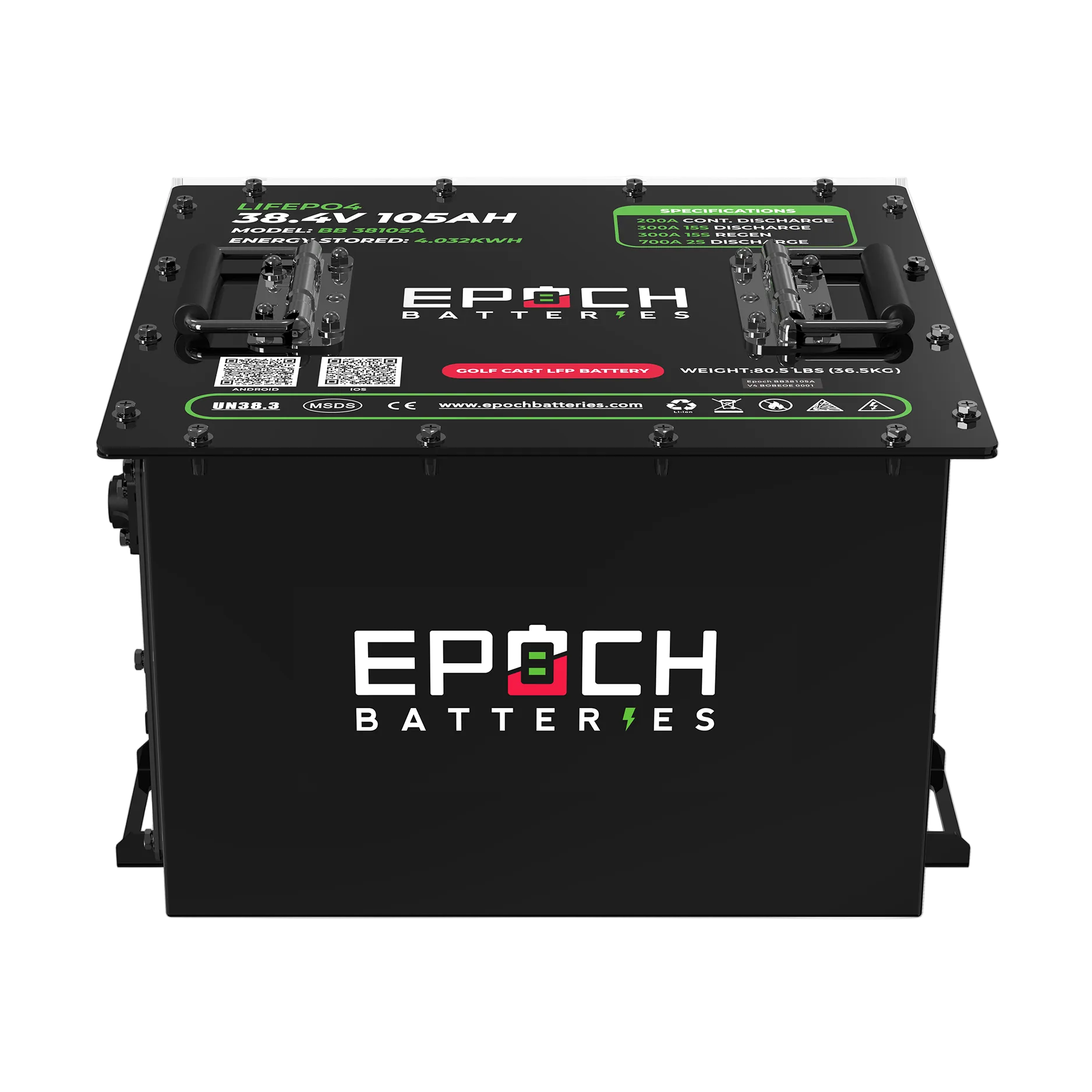

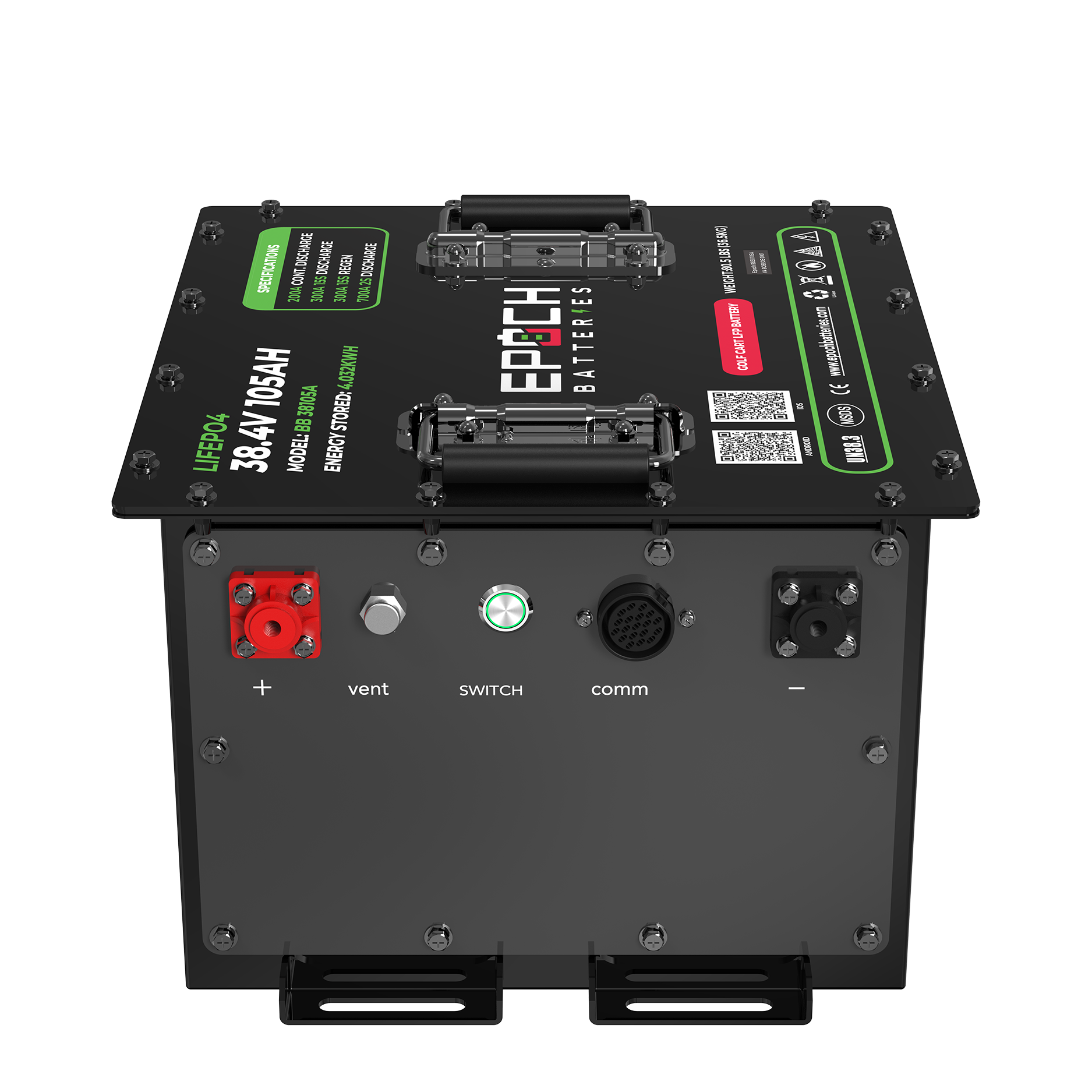

Epoch Batteries 36V 105Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit

Epoch Batteries 36V 105Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit

$1,699.00 USD
$1,699.00 USD
Sale Sold out
Shipping calculated at checkout.
  • Please Specify EZ Go, Club Car, or Other



  • Complete Lithium Conversion Kit

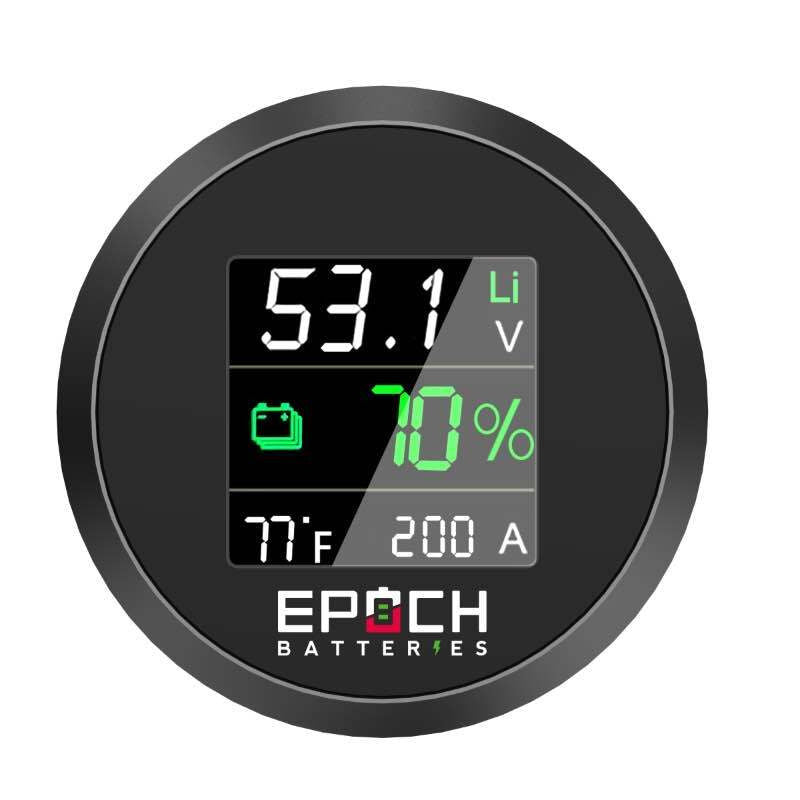

  • 36V 15A Lithium Charger, Battery Gauge, 12V Converter INCLUDED

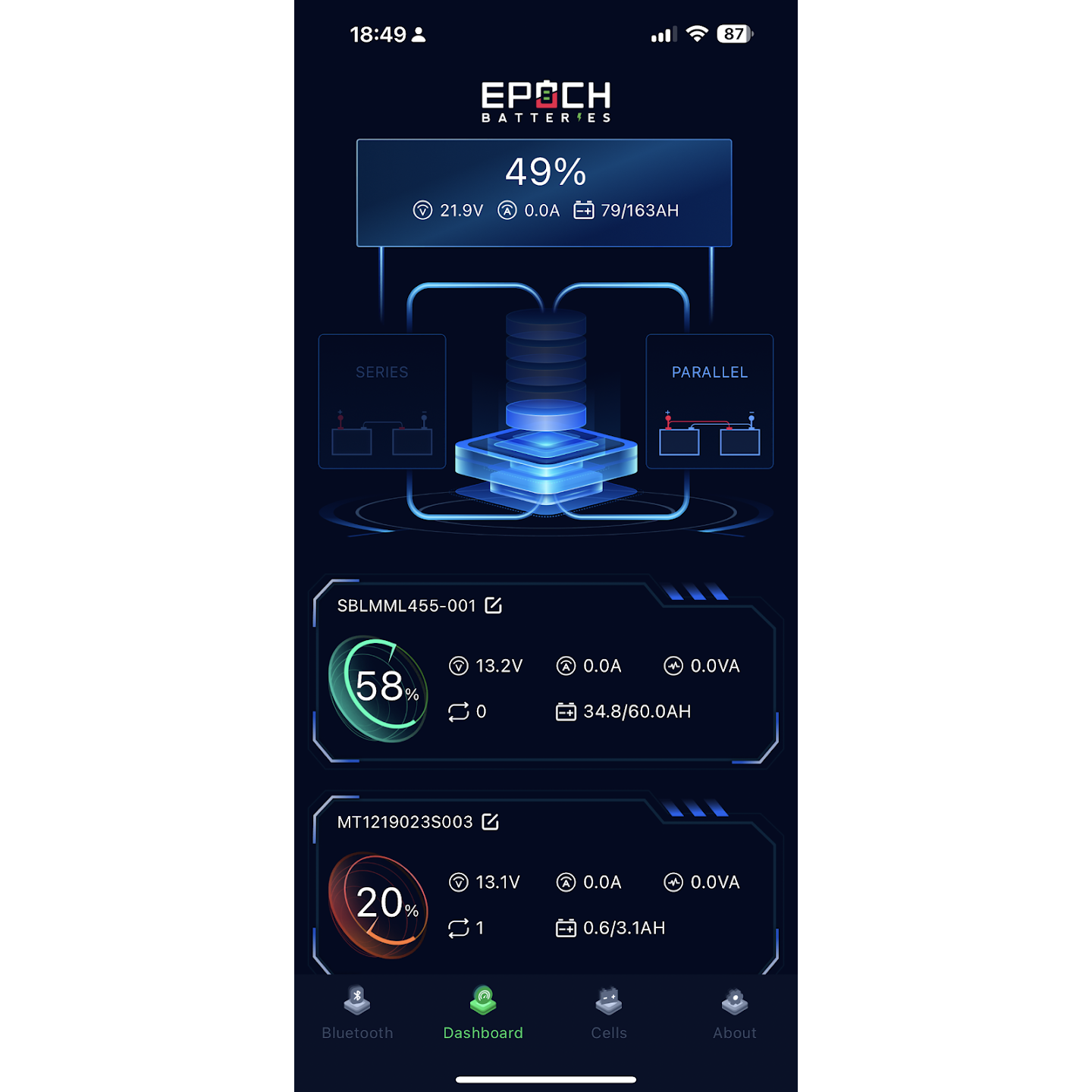

  • Bluetooth App (iOS & Android)
  • Over the air firmware updates available
  • 200A Max Continuous Discharge
  • 300A @ 15s, 700A @ 2s Peak Discharge
  • 100A Max Continuous Charge
  • 300A @ 15s Peak Charge/Regen
  • 3,500 Cycle Life
  • 11 Year Warranty
Configuration
Cell Configuration: 1P12S
Chemistry: LiFePO4
Current
Ah Capacity: 105Ah
Max Continuous Discharge Amps: 200A
Max Charge Current Amps: 100A Continuous, 300A @ 15s
Max Discharge Peak Current Amps: 300A @ 15s, 700A @ 2s
Series | Parallel: Max (2) in Parallel
Voltage
Voltage: 38.4V
Max Charge Voltage: 43.8V
Operating Voltage Range: 30 - 43.8V
Temperature
Charge Temp Range: 0°C (32°F) / 55°C (131°F)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)
Weight: 81 (LBS)
Dimensions
Length: 14.6 (inches)
Width: 13.4 (inches)
Height: 9.9 (inches)
