Epoch Battery

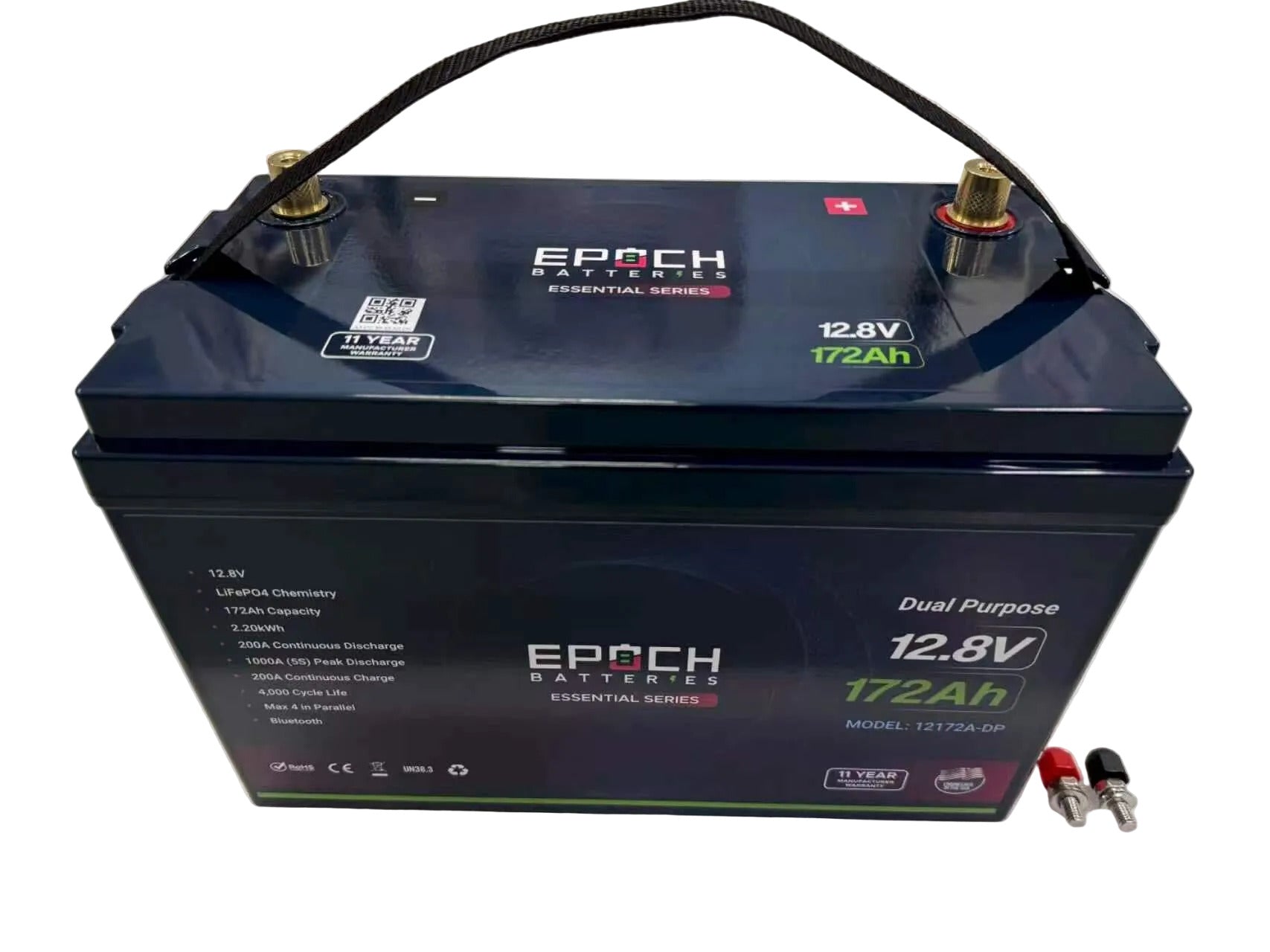

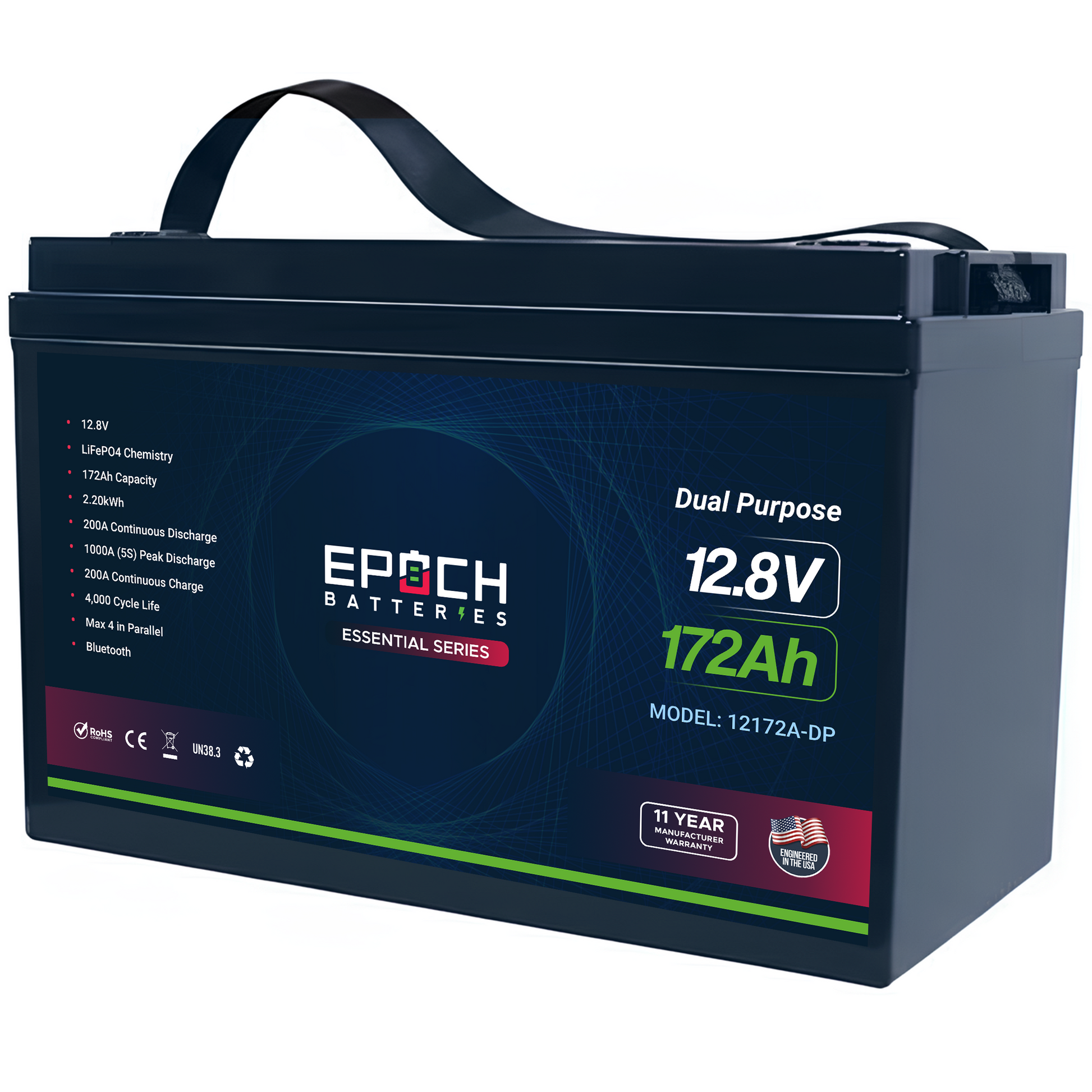

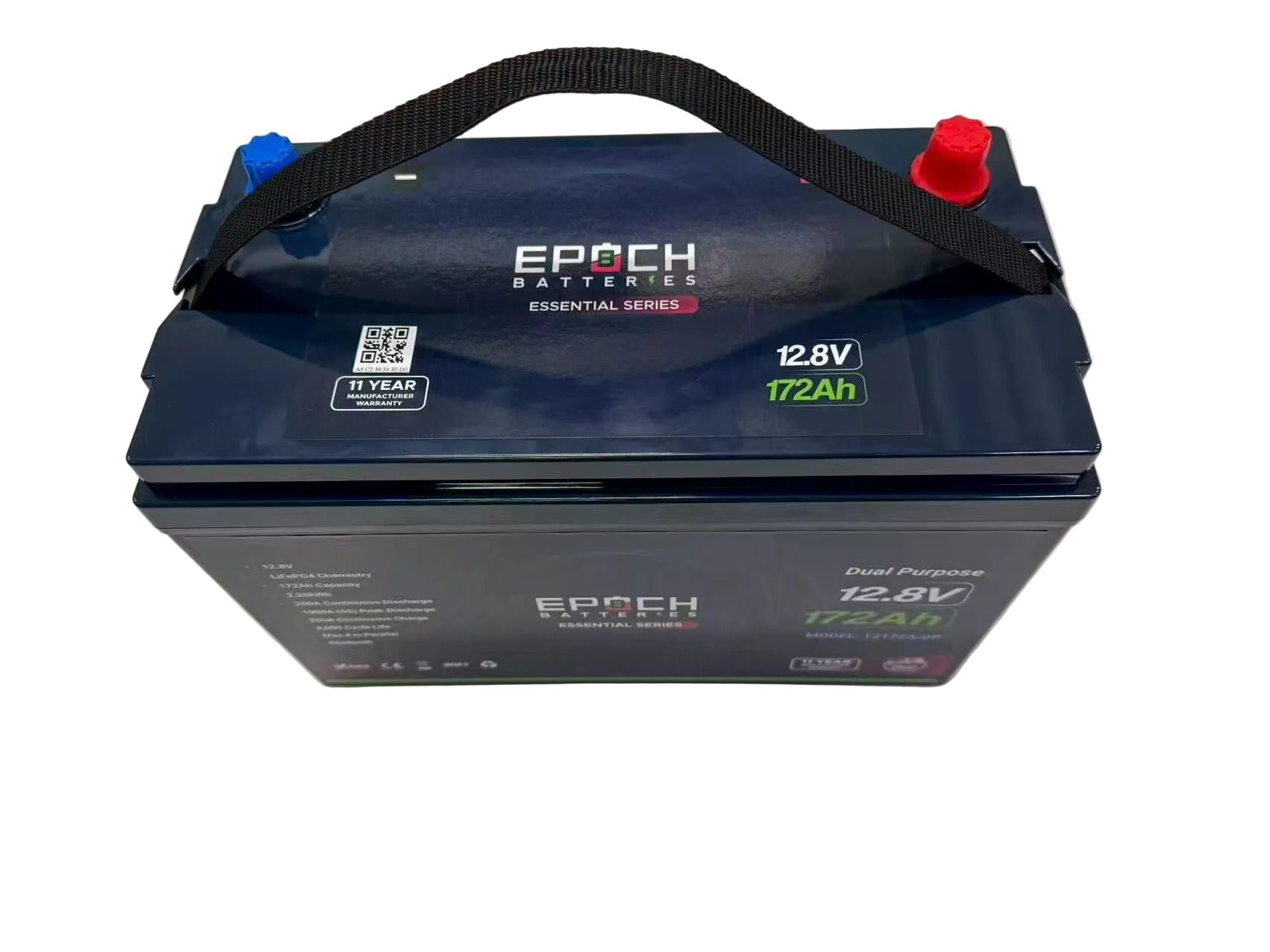

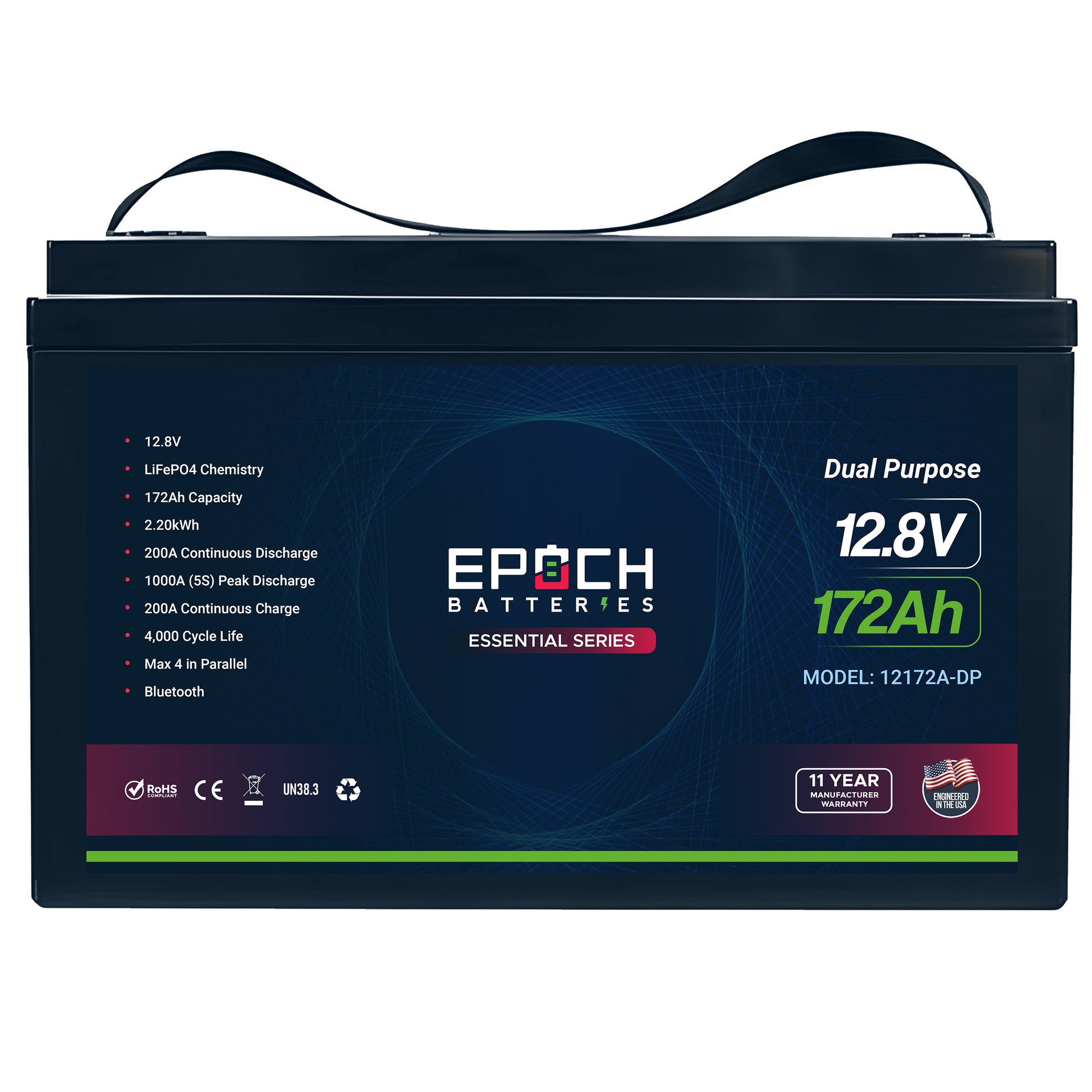

Epoch Batteries (PRE-ORDER) 12V 172Ah (2.20kWh) Dual Purpose Essential Series - Group 31 LiFePO4 Battery - ETA APR 30
Epoch Batteries (PRE-ORDER) 12V 172Ah (2.20kWh) Dual Purpose Essential Series - Group 31 LiFePO4 Battery - ETA APR 30
Regular price
$799.00 USD
Regular price
Sale price
$799.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- LiFePO4 Chemistry
- Cranking Dual Purpose Battery ~ 1000 CCA ~ Compatible with all outboard motors up to 250hp
- 1,000A @ 5s - Cranking Capability
- 200A Max Continuous Discharge
- BLUETOOTH - iOS and Android Apps
- IP65 Rated, Dust and WATERPROOF
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- Max (4) in Parallel
- 4,000+ Cycle life & Maintenance-free
- 11 Year Manufacturer Warranty
Configuration
Cell Configuration: 4S1P
Chemistry: LiFePO4
Current
Ah Capacity: 172Ah
Max Continuous Discharge Amps: 200A
Max Charge Current Amps: 200A
Max Discharge Peak Current Amps: 1,000A @ 5s
Series | Parallel: Max (4) in Parallel
Voltage
Voltage: 12.8V
Max Charge Voltage: 15.0V
Operating Voltage Range: 10.0V - 14.6V
Temperature
Charge Temp Range: −5°C (23°F) / 55°C (131°F)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F)
Weight: 40 lbs
Dimensions
Length: 12.91 (inches)
Width: 6.22 (inches)
Height: 8.46 (inches)
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
Bulk/Absorption: 14.2V – 14.6V
Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
Float: 13.4V – 13.8V
Equalization: 14.4V/ Disabled
Temperature Compensation: 0/Disabled
Charge Rate: 50% of the battery or battery bank capacity
Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
Cell Discharge Temperature: -4°F (-20°C) to 140°F (60°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
