Epoch Battery

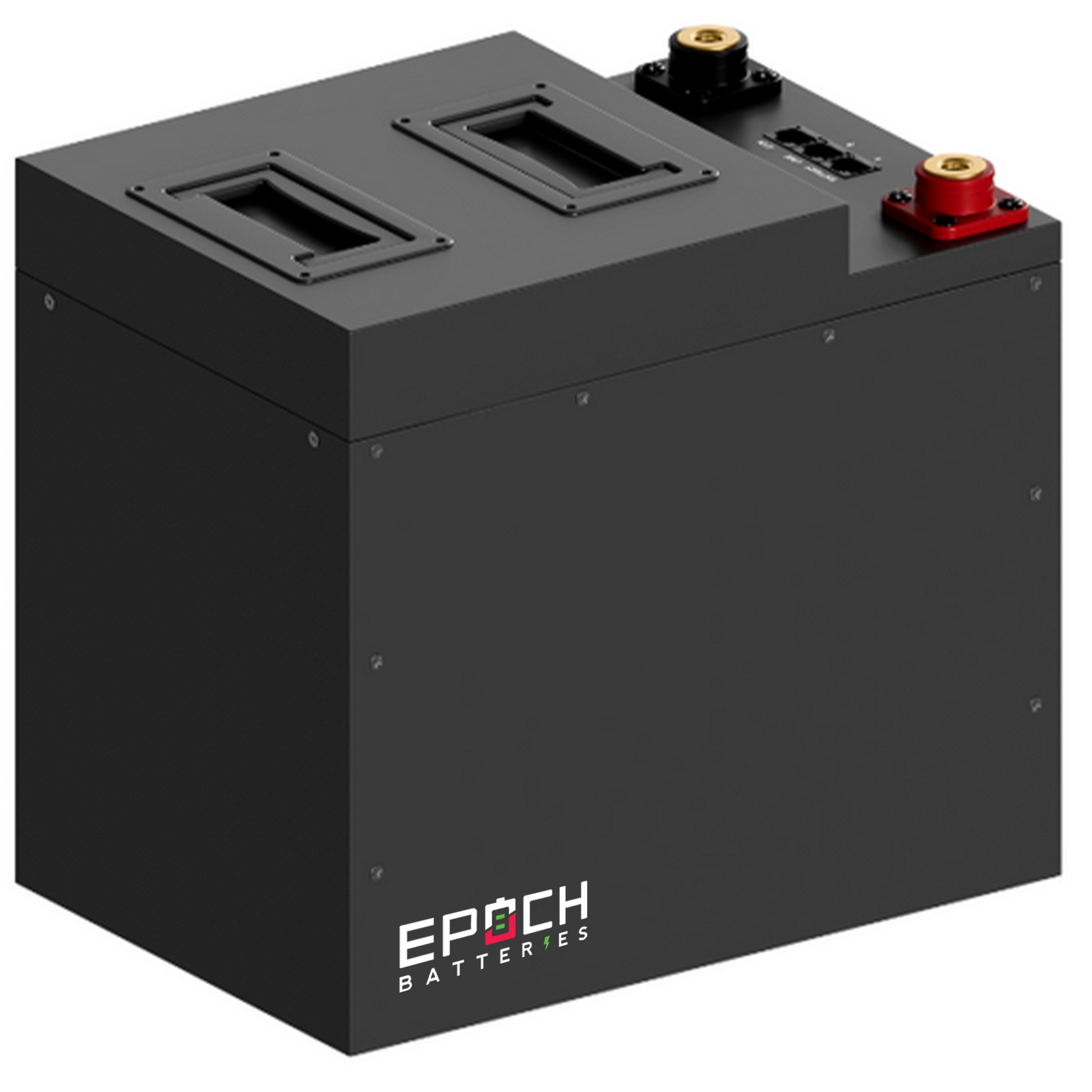

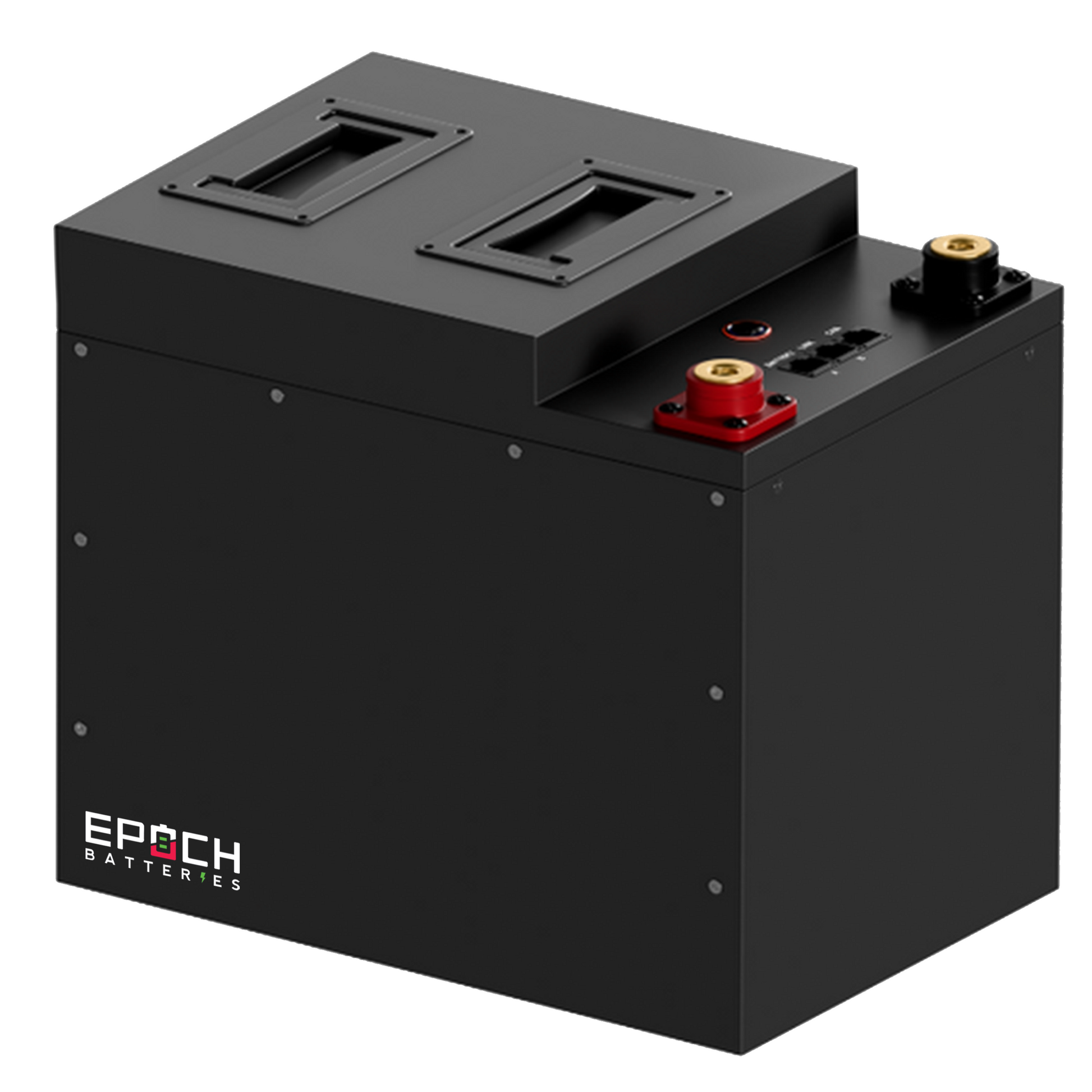

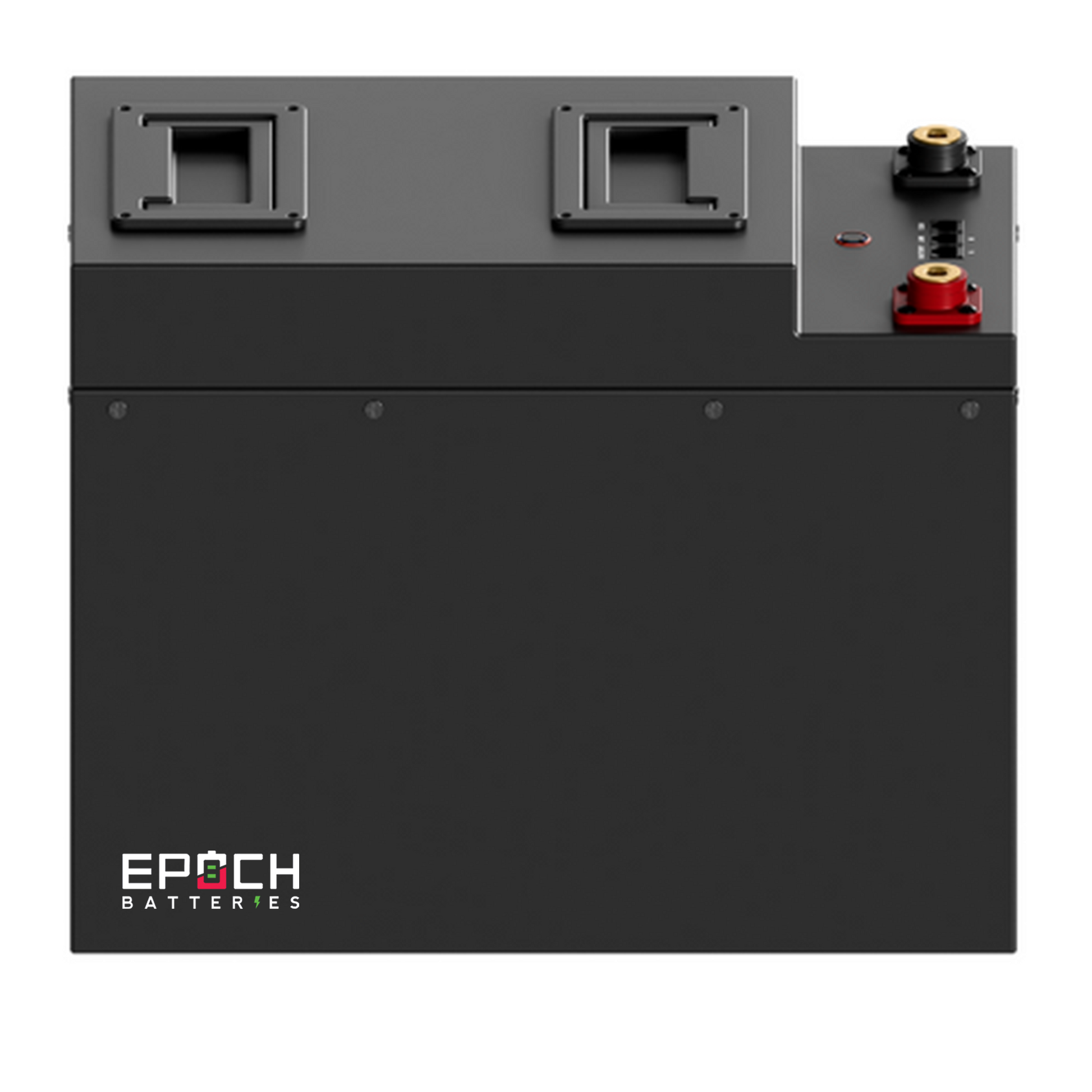

Epoch Batteries (PRE-ORDER) 12V 334Ah (4.28kWh) Essential Series - Bluetooth & Heated LiFePO4 Battery - ETA APR 14
Epoch Batteries (PRE-ORDER) 12V 334Ah (4.28kWh) Essential Series - Bluetooth & Heated LiFePO4 Battery - ETA APR 14
Regular price
$1,299.00 USD
Regular price
Sale price
$1,299.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- LiFePO4 Chemistry
- HEATED - Internal heating allows for charging in sub-zero conditions
- BLUETOOTH - iOS and Android Apps
- 2A ACTIVE BALANCING - automatically detecting and correcting voltage differences between cells to keep performance smooth and consistent.
- VICTRON COMMS - The system automatically detects the master battery, eliminating the need for manual configuration. Each battery passes communication through to the next, forming a robust and scalable data network. Communication across the battery bank is unlimited, enabling full visibility and control.
- 300A Max Continuous Discharge
- 600A @ 10s - Peak Discharge
- 150A Max Continuous Charge
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- Max (16) in Parallel
- 4,500+ Cycle life & Maintenance-free
- 11 Year Manufacturer Warranty
Configuration
Cell Configuration: 4S1P
Chemistry: LiFePO4
Current
Ah Capacity: 334Ah
Max Continuous Discharge Amps: 300A
Max Charge Current Amps: 300A
Max Discharge Peak Current Amps: 600A (10 Seconds)

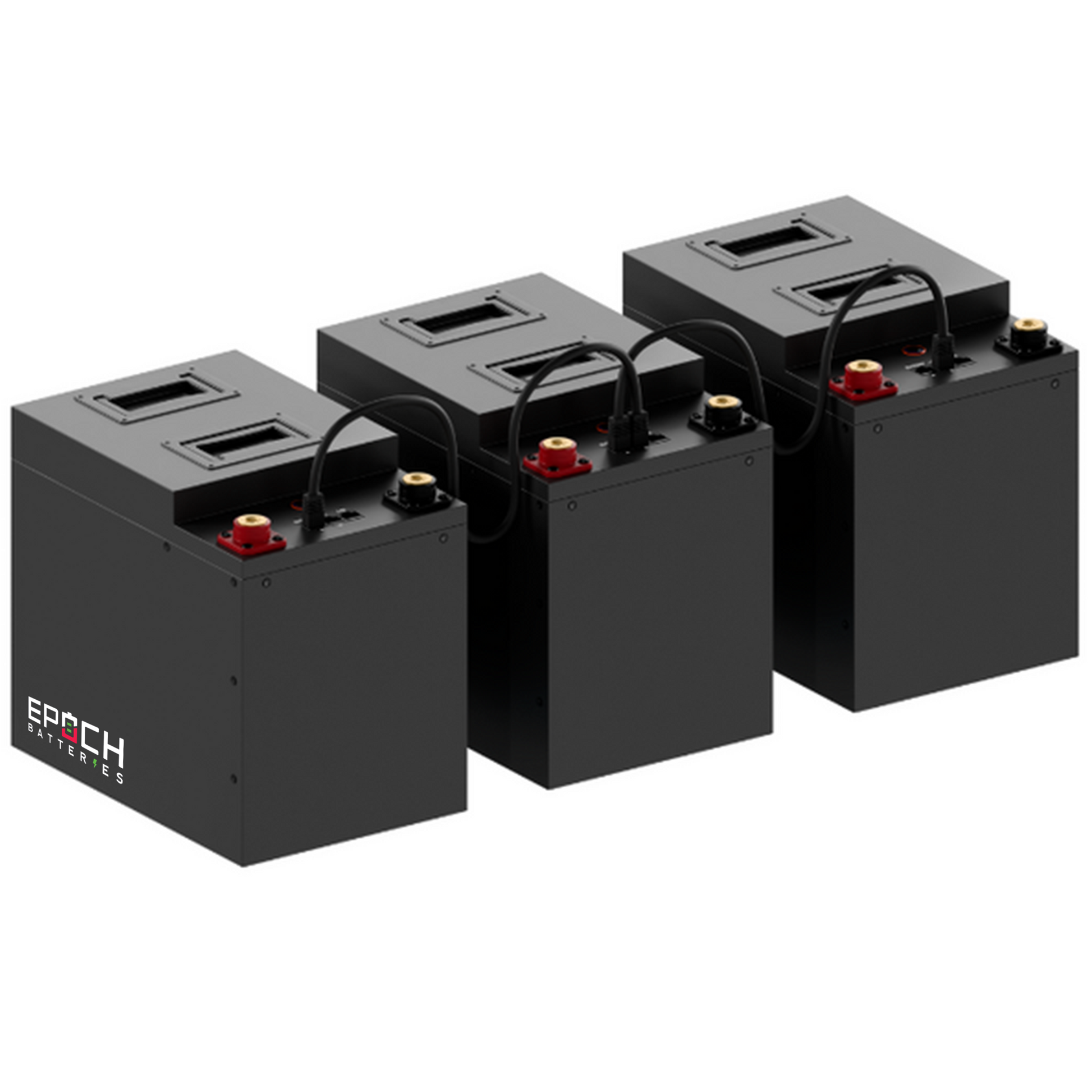

Series | Parallel: Max (16) in Parallel
Voltage
Voltage: 12.8V
Max Charge Voltage: 14.6V
Operating Voltage Range: 10.0 - 14.6V
Temperature
Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F)
Weight: 75 (LBS)
Dimensions
Length: 15.35" (inches)
Width: 8.07" (inches)
Height: 11.02" (inches)
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
Bulk/Absorption: 14.2V – 14.6V
Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
Float: 13.4V – 13.8V
Equalization: 14.4V/ Disabled
Temperature Compensation: 0/Disabled
Charge Rate: 50% of the battery or battery bank capacity
Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
Cell Discharge Temperature: -4°F (-20°C) to 140°F (60°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
