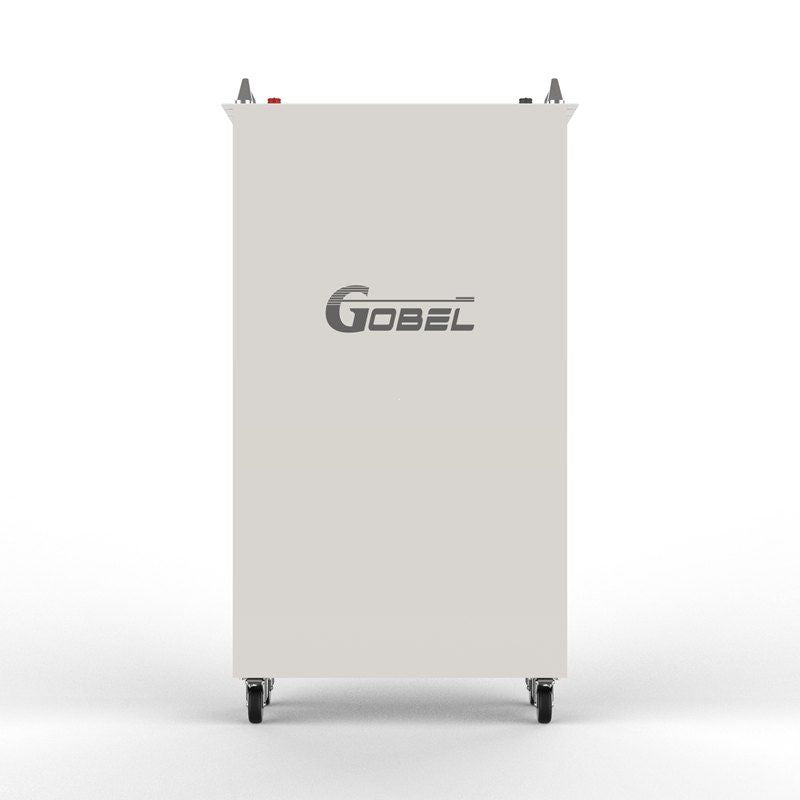

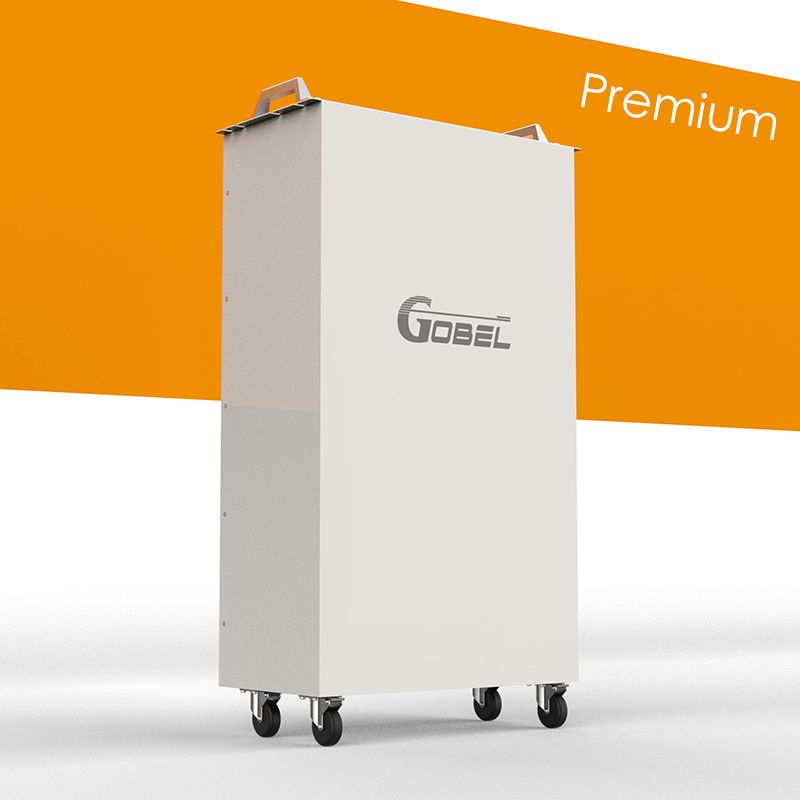

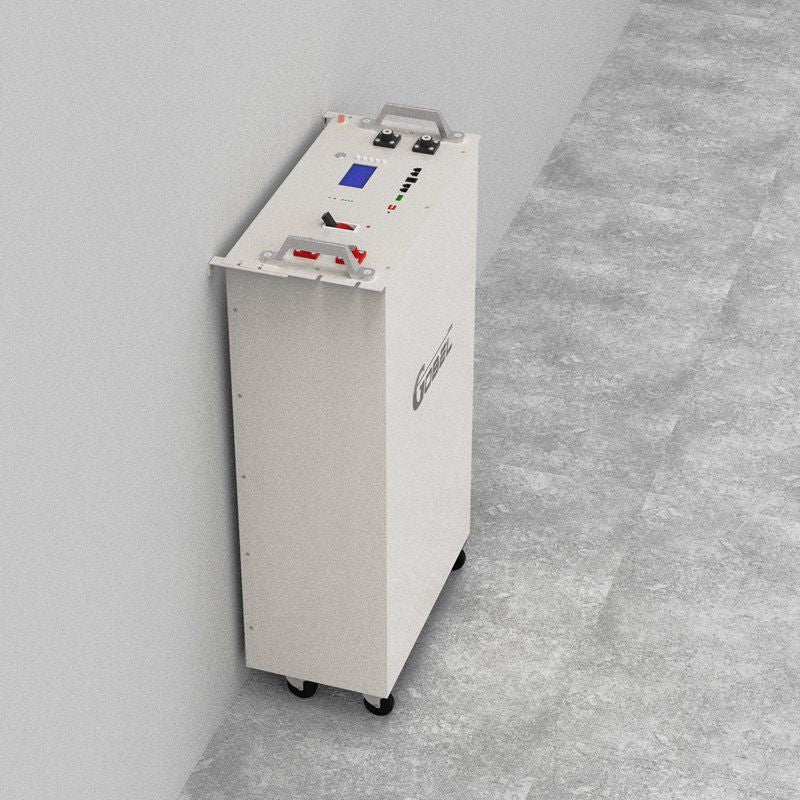

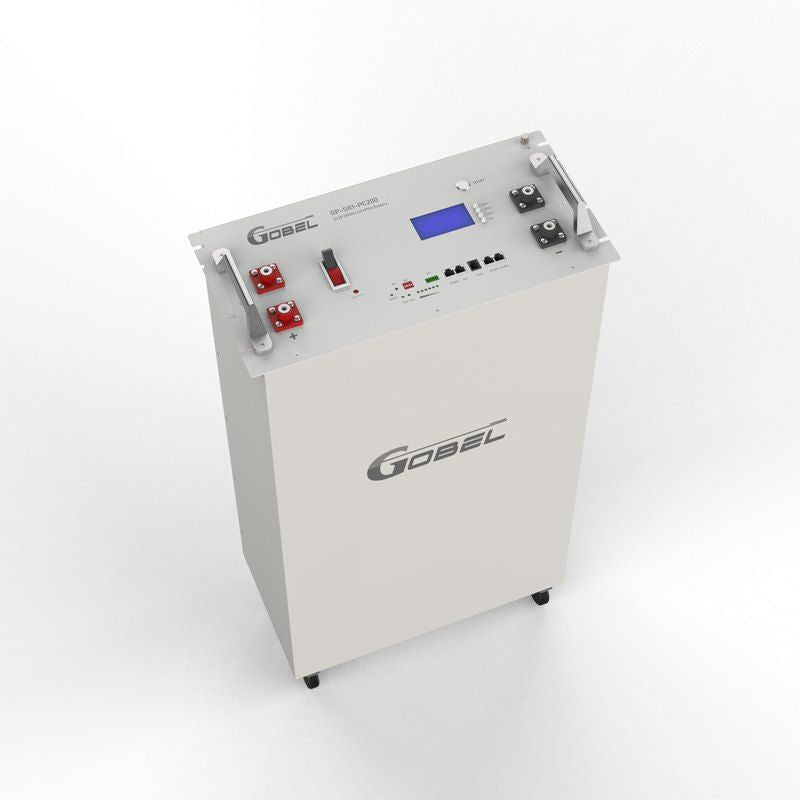

Gobel Power GP-SR1-PC200 Premium 51.2V 280Ah 15kWh LiFePO4 Server Rack Battery

Units are on the way and will be in the San Diego warehouse Mid October.

Gobel Power GP-SR1-PC200 Premium 51.2V 280Ah 15kWh LiFePO4 Server Rack Battery

Model:

GP-SR1-PC200 Premium

Battery Type:

Prismatic LiFePO4

Nominal Voltage:

51.2V

Nominal Capacity:

280Ah

Total Energy:

14.34kWh

Battery Cells:

16S1P 280Ah Cells

Max Charge Current:

140A

Max Discharge Current:

150A

Charge Cut-off Protect Voltage:

55.2V

Disharge Cut-off Protect Voltage:

44V

Communication Port:

RS485, RS232, CAN

Parallel Connection:

Max 15 Units in Parallels

Series Connection:

No

Cycle life:

6000 Times

Size:

482.6*771.5*241 (19" x 34" x 9.5")

Weight:

118kg (260 pounds)

Cooling:

Natural cooling

Environment:

Indoor

Mounting options:

Sever Rack, Floor

Discharge Temperature (℃):

-30℃~+60℃

Charge Temperature (℃):

0℃ ~+60℃

Inverter Compatibility:

Yes

Maximum Elevation:

4000m

Warranty:

10 Years

All Gobel Power batteries (GP-SR1) must undergo rigorous full cycling tests before being shipped. Some standards for battery with LSEV cells are:

The maximum charging voltage when a single cell triggers overvoltage protection: ≥56V (The standard ensures that all battery cells possess commendable uniformity. The lower the voltage value, the poorer the consistency.)

The minimum discharge voltage when a single cell triggers low voltage protection: ≤44V (The standard ensures that all battery cells possess commendable uniformity. The higher the voltage value, the poorer the consistency.)

Capacity: ≥280Ah

Cells Inside: Brand new EVE 280Ah cells with 6,000 times cycles life

2 Mounting Method: Standard 6U server rack or on floor

BMS: 200A professional ESS BMS compatible with most inverters

Communication Ports: RS485, CAN, RS232

Active Balance: 4A Bluetooth Active Balancer

Compressed Cells: noval design able to impose 300kgf on cells

Circut Breaker: 250A

Wheels: Easily Move
