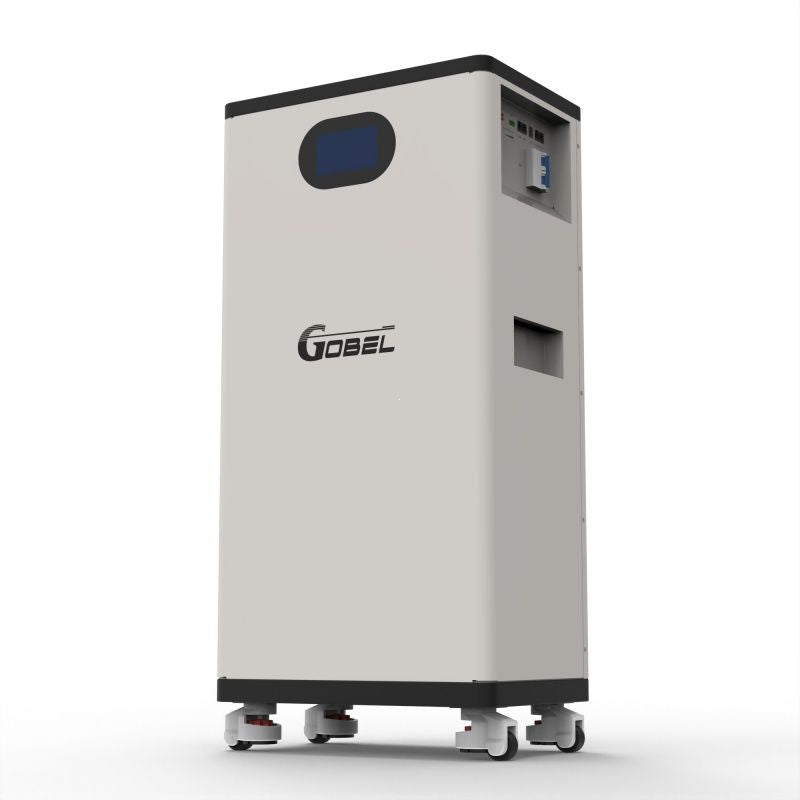

Gobel Power GP-PB2-JK314 51.2V 314Ah 16kWh LiFePO4 Battery

Model:

GP-PB2-JK314

Battery Type:

Prismatic LiFePO4

Nominal Voltage:

51.2V

Nominal Capacity:

314Ah

Total Energy:

16kWh

Battery Cells:

16S1P 314Ah Cells

Max Charge Current:

140A

Max Discharge Current:

200A

Charge Cut-off Protect Voltage:

55.2V

Disharge Cut-off Protect Voltage:

46V

Communication Port:

RS485, CAN, Bluetooth

Parallel Connection:

Max 15 Units in Parallels

Series Connection:

No

Cycle life:

10000 Times

Size:

482.6*771.5*241

Weight:

118kg

Cooling:

Natural cooling

Environment:

Indoor

Mounting options:

Sever Rack, Floor

Discharge Temperature (℃):

-30℃~+60℃

Charge Temperature (℃):

0℃ ~+60℃

Inverter Compatibility:

Yes

Active Balancer:

Buit-in 2A Active Balancer

Maximum Elevation:

4000m

Warranty:

5 Years

All Gobel Power batteries must undergo rigorous full cycling tests before being shipped. Some standards for battery are:

The maximum charging voltage when a single cell triggers overvoltage protection: ≥56V (The standard ensures that all battery cells possess commendable uniformity. The lower the voltage value, the poorer the consistency.)

The minimum discharge voltage when a single cell triggers low voltage protection: ≤44V (The standard ensures that all battery cells possess commendable uniformity. The higher the voltage value, the poorer the consistency.)
