SK12V100H | SOK 12V100Ah LiFePO4 Battery Bluetooth & Built-in heater

SK12V100H designed for cold weather using! Can safely charge at temperatures down to -20°C (-4°F) by a standard charger or solar charger. The heater pads which draws power from the charger itself, battery cells have no power lost.

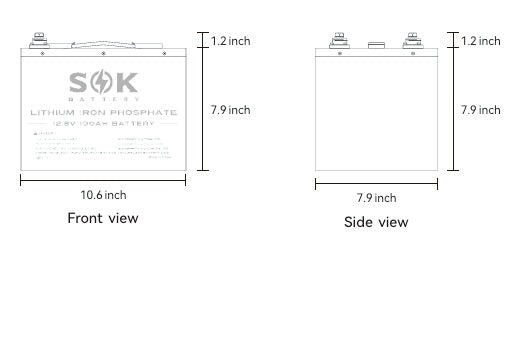

10.6" Long x 7.9" Deep x 7.9" High (add 1.2" for terminals on top)

• • Description

    Download the app to connect and monitor your SOK Battery.

    Search ABC-BMS on google or apple store, download and install.

    Please note: SOC is initially incorrect, it takes 2 full charge / discharge cycles to reach proper calibration.

    7 year warranty and maintenance free with a 4000-8000 cycles life span.

    Detachable cover with replaceable BMS and cells.

    Built-in heater pad for using in down to -4°F.

    Bluetooth4.0 , supprot IPhone or Android smartphone.

    Support connect in parallel for larger capacity.

    Built-in smart Battery Management System (BMS).

    Low temperature charging cut-off.

    High temperature charging or discharging cut-off.

    Over charging and discharging protection.

    Over current and short circuit protection.

    Battery cells auto balance.

    Please note for connecting in series: NOT OVER 4 Batteries IN SERIES, and make sure add the battery voltage balancer.

  • Spec Information

    Charge information:

    Recommended Charge Current    20 A

    Maximum Charge Current    70 A

    Recommended Charge Voltage    14.6 V



    Discharge information

    Maximum Continuous Discharge Current    170 A

    Peak Discharge Current    200 A (3 s)

    Recommended Low Voltage Disconnect    10.4V



    Size Information:

    Terminal Type: M8, 5/16 lugs

    Weight: 27 lbs.

    Temperature Information:

    Discharge Temperature    -4 to 140 ºF

    Charge Temperature    -4 to 113 ºF

    Storage Temperature    23 to 95 ºF



    Certifications Information:

    UL1973&IEC62619 for Battery cells.
