Victron Energy
Victron PMP242305130 MultiPlus-II 24/3000/70-50 2x120V Auth Dealer 5 year warr
Victron PMP242305130 MultiPlus-II 24/3000/70-50 2x120V Auth Dealer 5 year warr
Regular price
$1,133.90 USD
Regular price
Sale price
$1,133.90 USD
Unit price
/
per
Couldn't load pickup availability
|
We are an authorized Victron Energy Dealer/Distributor.
We offer free guidance & technical support. If you have any question prior, during, or after a purchase please reach out to us and we will give you the support you need. Multiple units can be programmed (FREE) for split phase or 3 Phase operation and your specific battery configuration.
Most of our Victron products are in stock in our rapid ship warehouse for same or next day shipment. Some items have a longer shipping time and will normally ship within 1 week. These differences are notated in the handling time of an item.

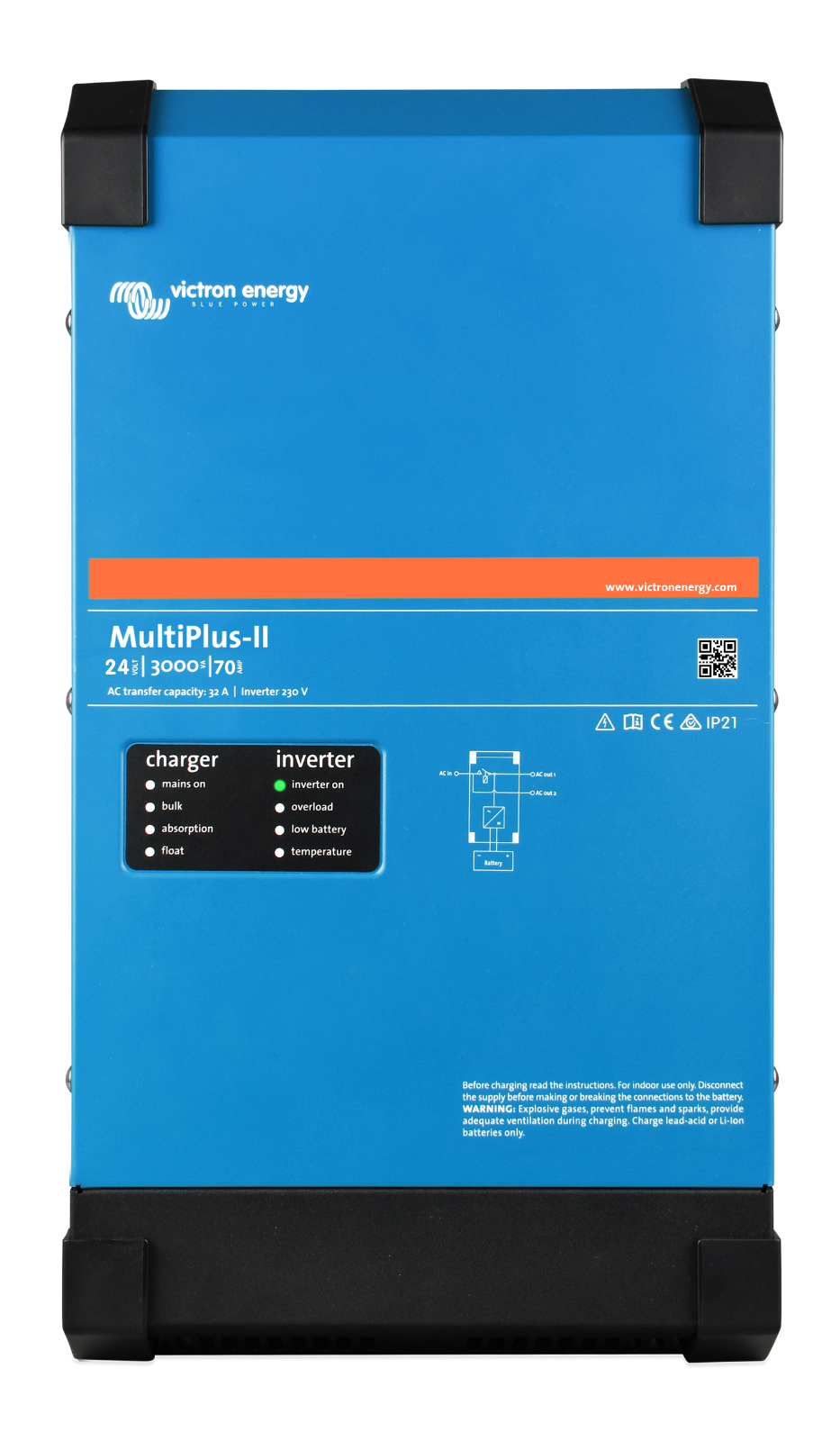

Photo may not match product listed, you will receive the part number/description.
PMP242305130 MultiPlus-II 24/3000/70-50 2x120V
The MultiPlus-II 2 x120V is the perfect one-box mobile solution for standard North American 50A 120/240VAC split-phase applications. Whether it is supplied from shore power or a generator, the MultiPlus-II 2x120V can accept and passthrough both lines of a 120/240V supply, with the capability to utilize the full 50A for charging and AC loads. When connecting to a single phase 120V supply, the L1 input of the MultiPlus-II 2x120V will accept incoming power for charging and passthrough, while combining the L1 and L2 outputs for single-phase 120V on each line. The MultiPlus switches to inverter operation when no AC source is available. The inverter output is also 120V single phase. In inverter mode, the MultiPlus-II 2x120V internally connects both lines L1 and L2 together to provide 120VAC to loads on either output. Therefore, in all connection circumstances, both sides of a distribution panel will be supplied with 120V. However, 240VAC is only available when the MultiPlus is supplied by a split phase 120/240VAC source. This prevents heavy loads such as water heaters or 240V air conditioners from discharging the battery. The MultiPlus-II 2x 120V has all of the expected features of our versatile inverter/charger range, including PowerControl, PowerAssist, Input Current Limit, two AC outputs, as well as parallel and 3ph configuration for larger capacity VE.Bus systems. Suitable for LiFePO4 batteries and a variety of other battery technologies. Models: 3000VA
|
